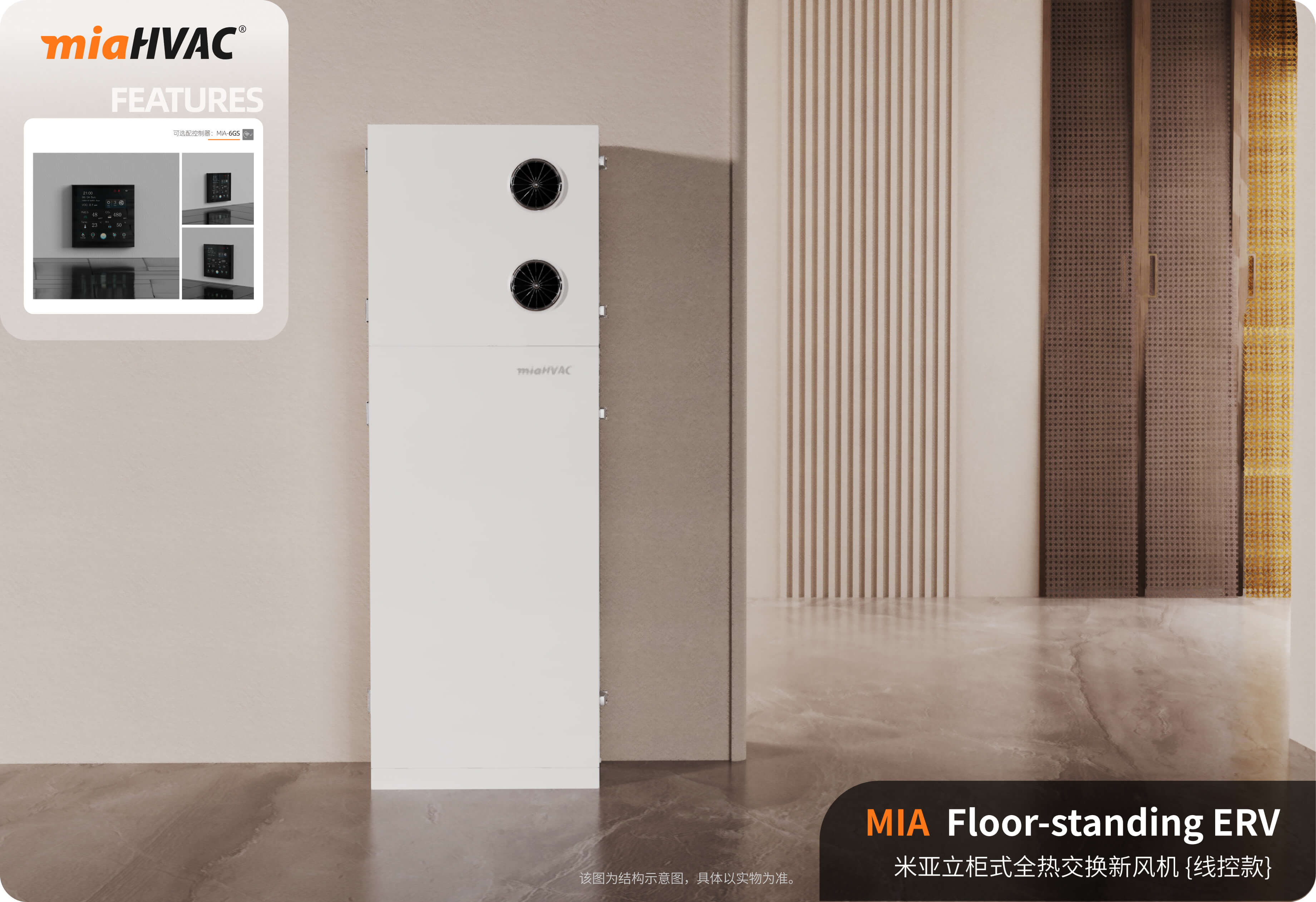

MIA Floor-standing ERV

MIA米亚立柜式全热交换新风机

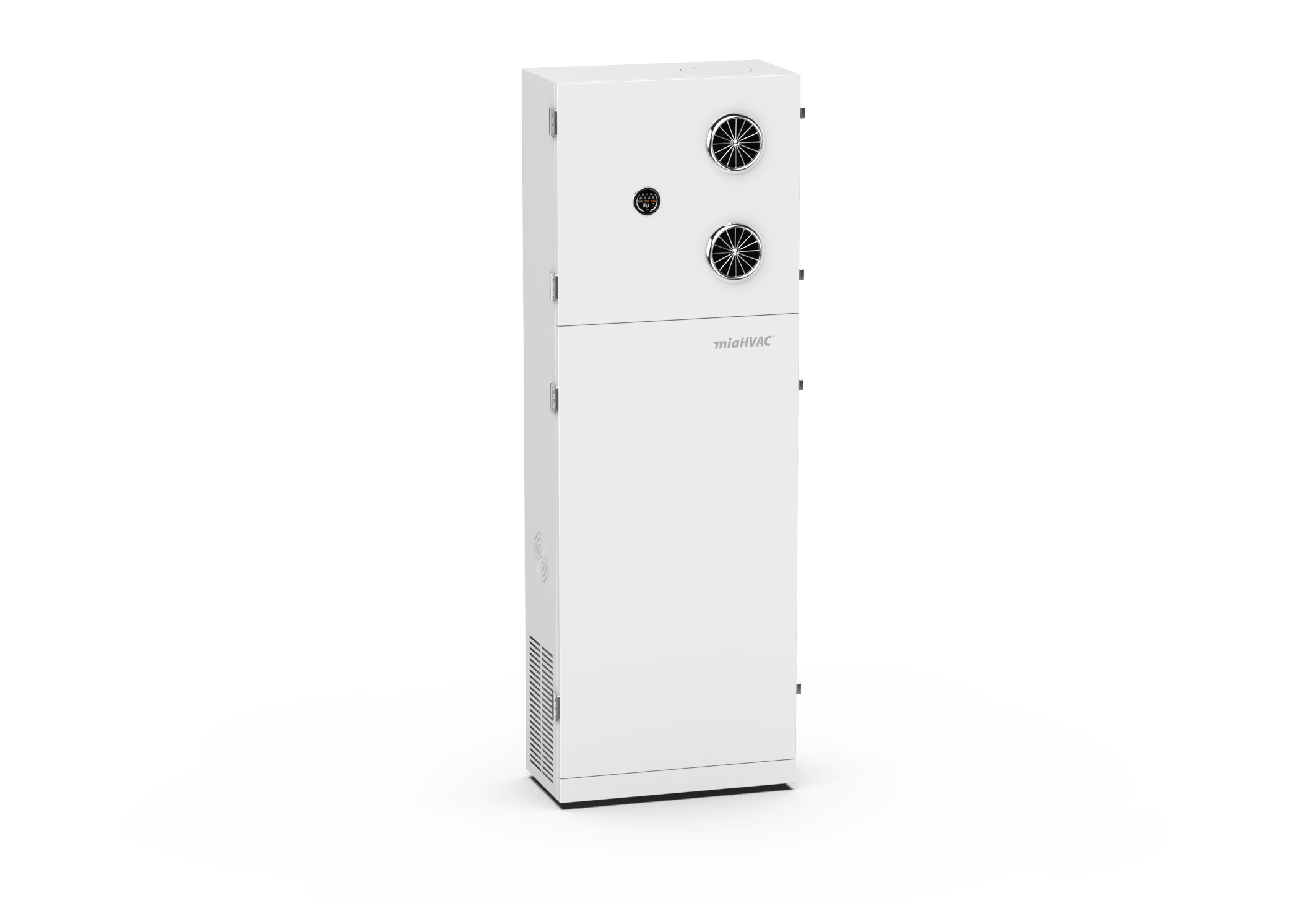

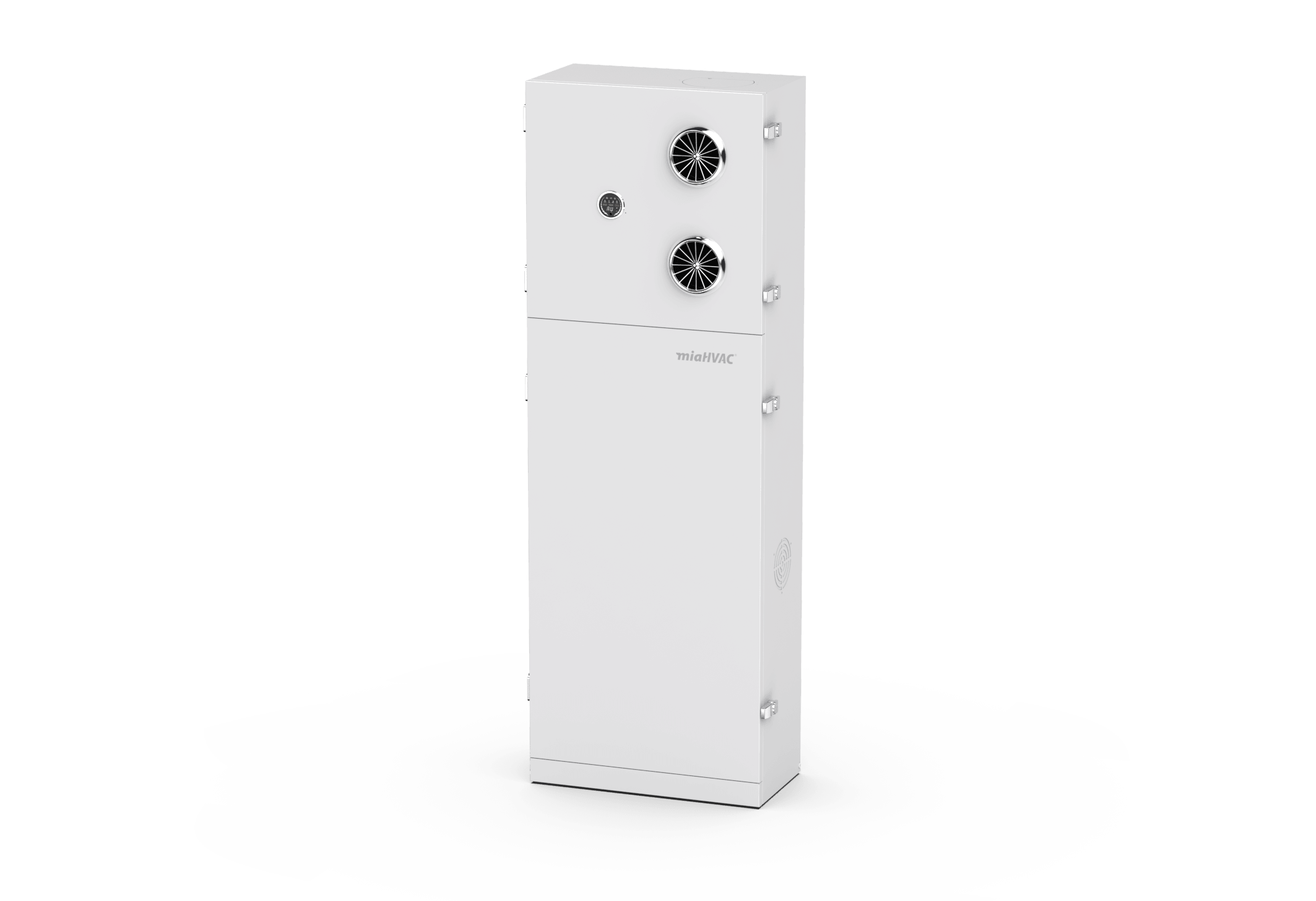

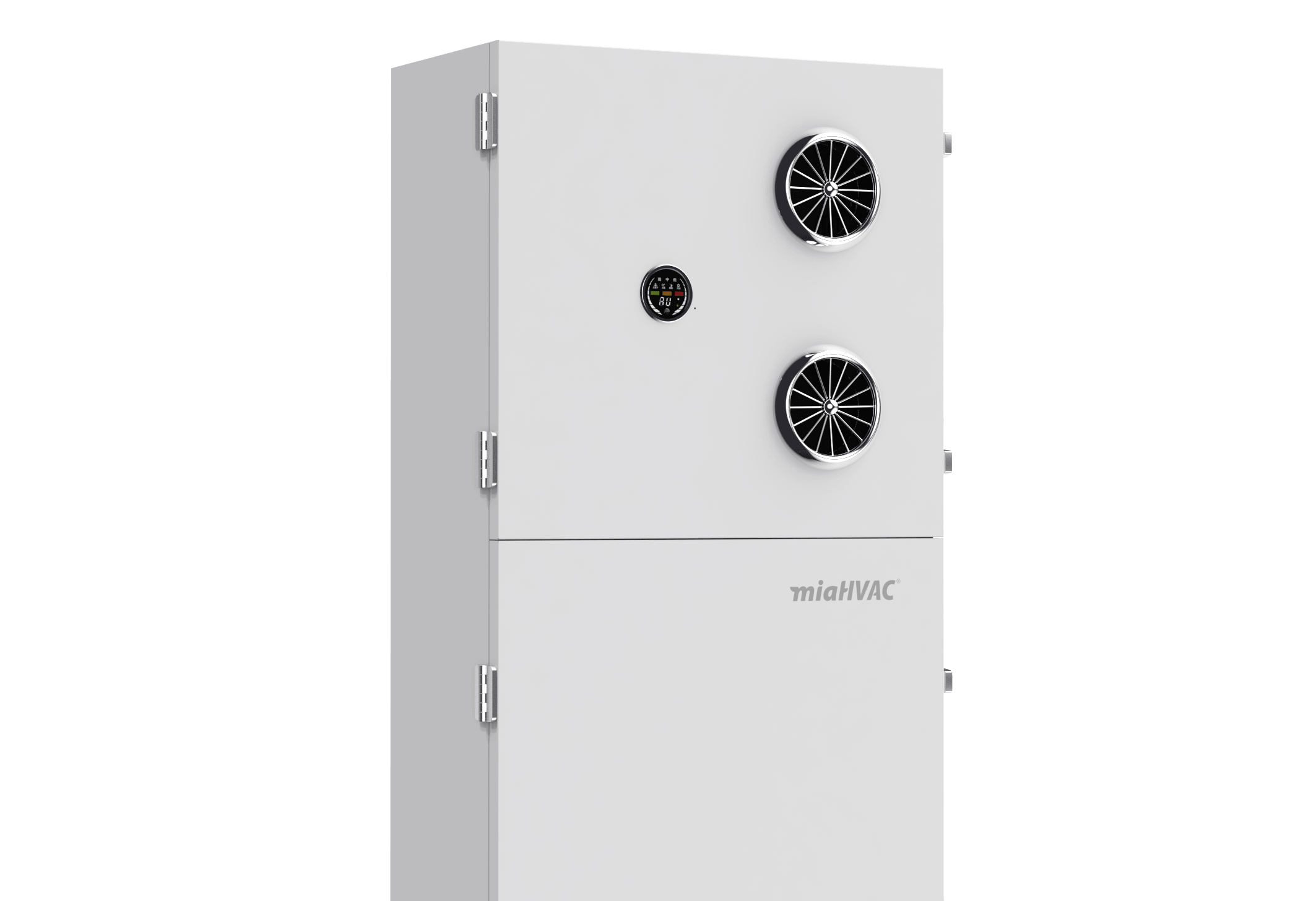

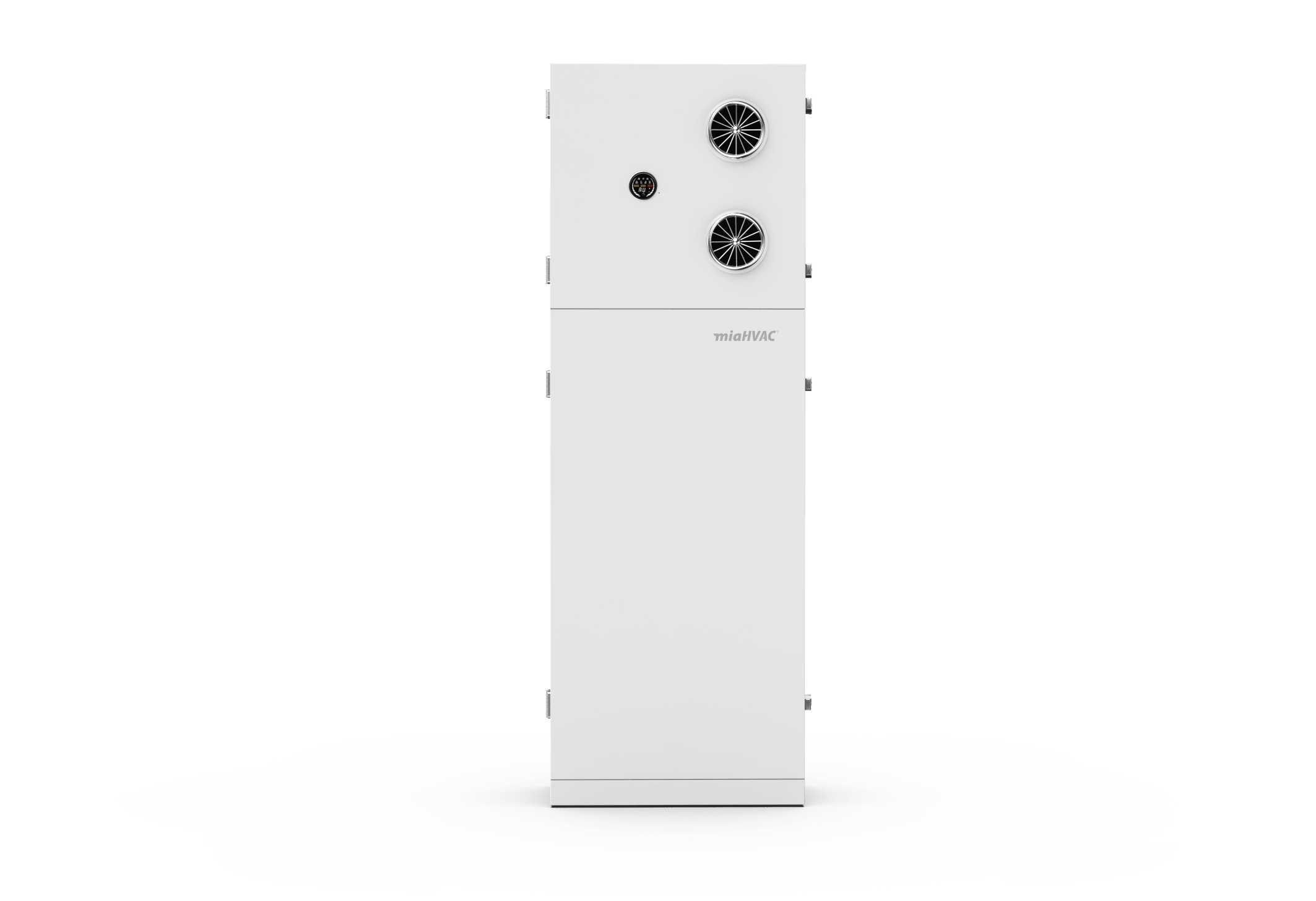

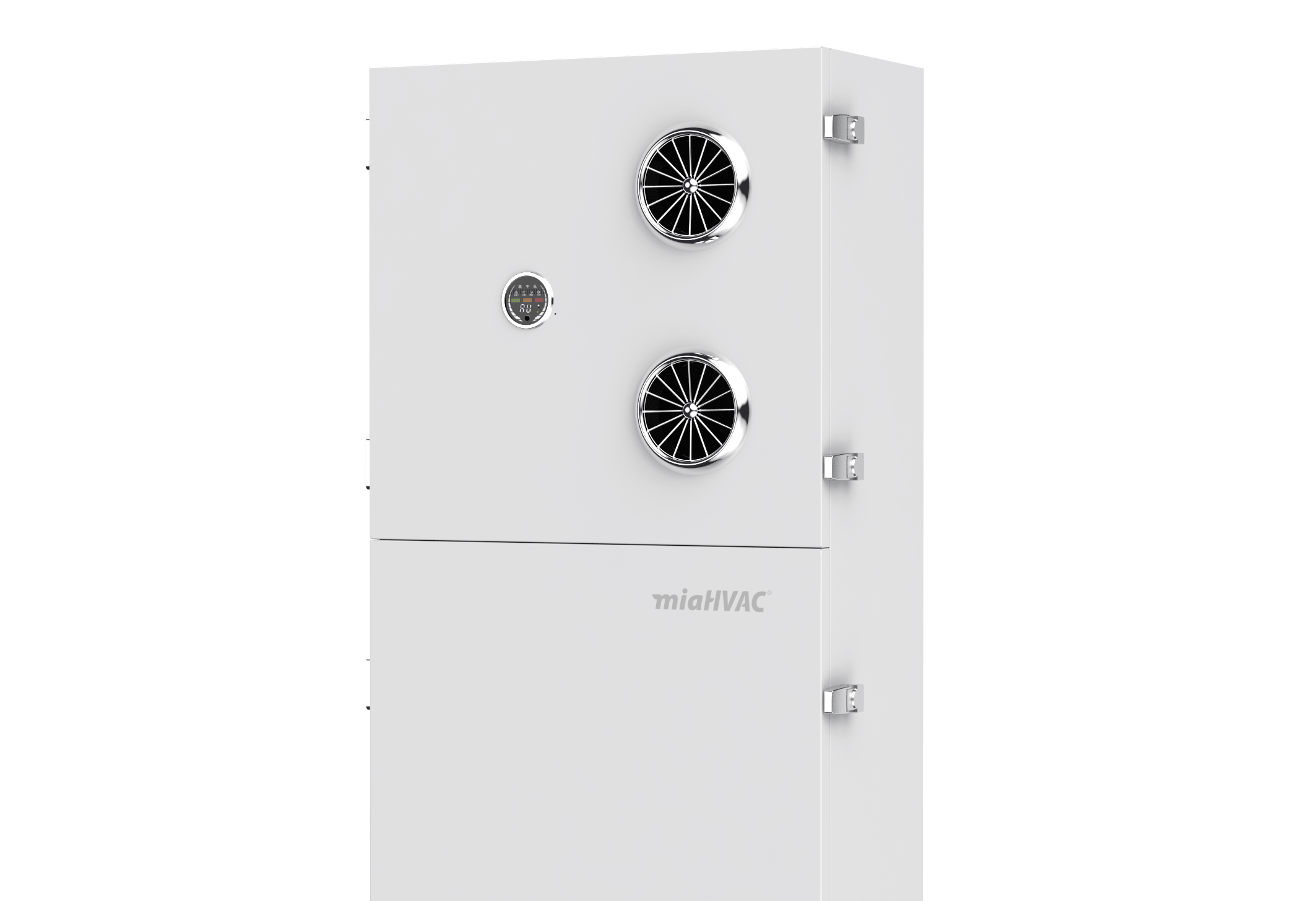

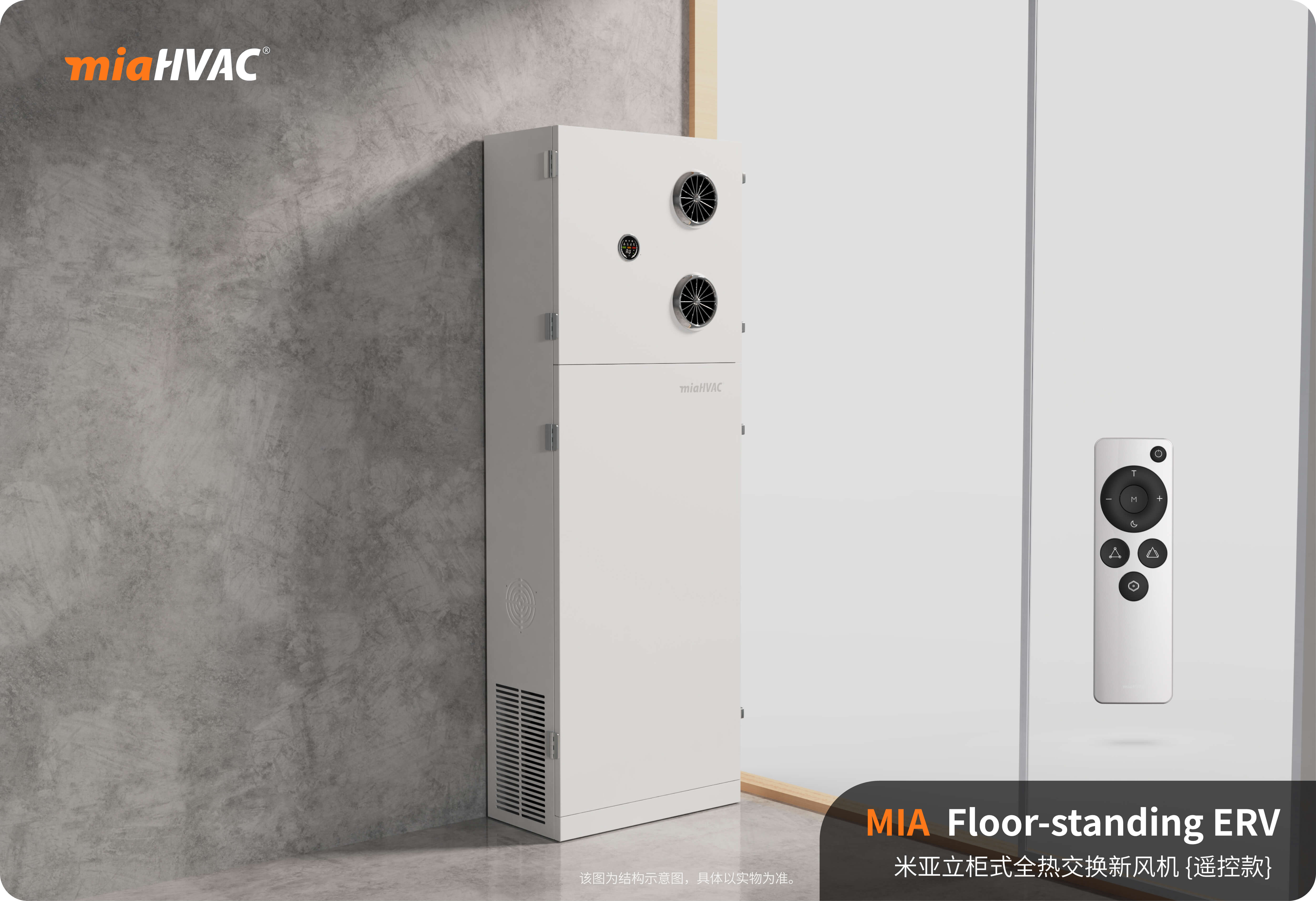

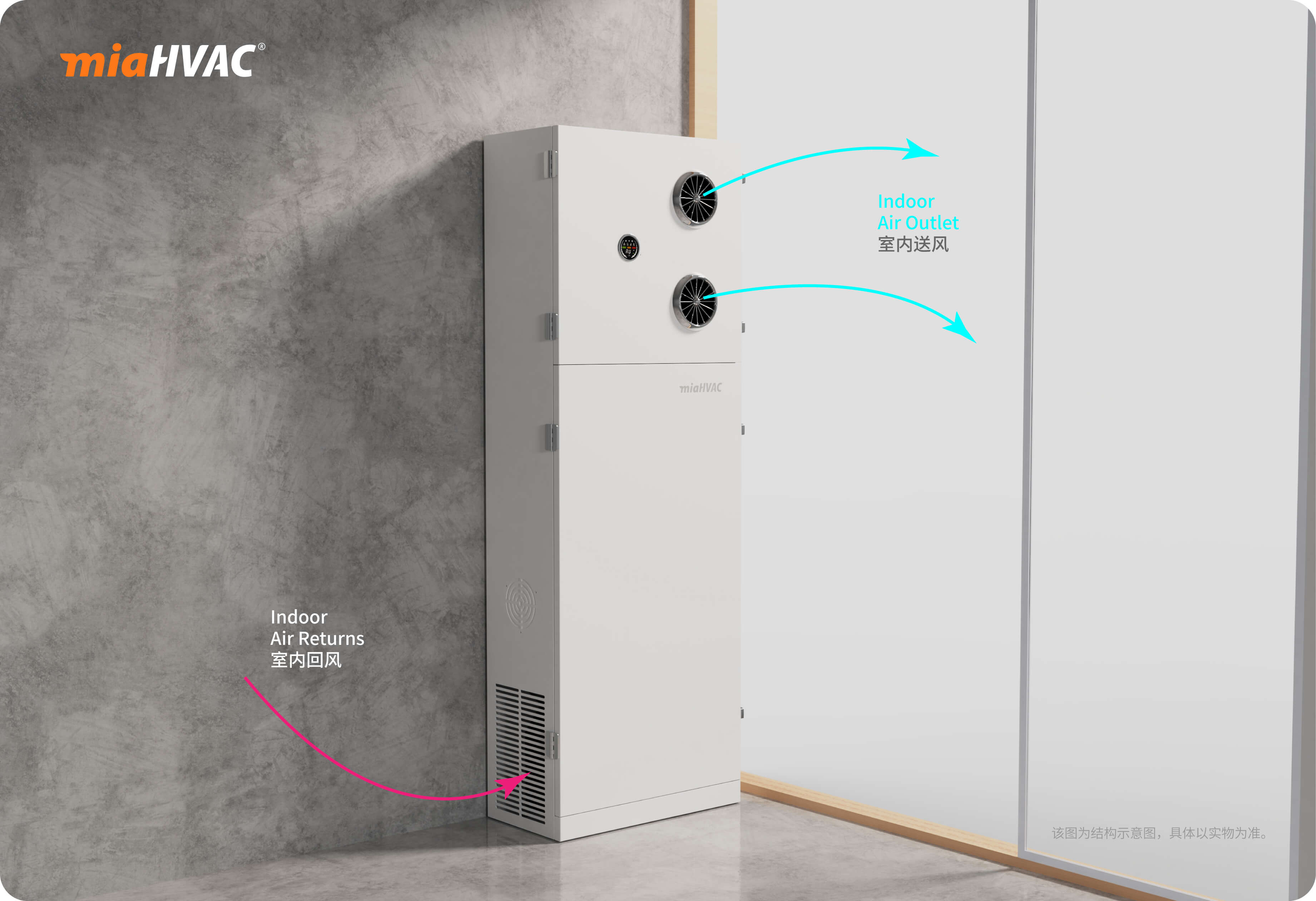

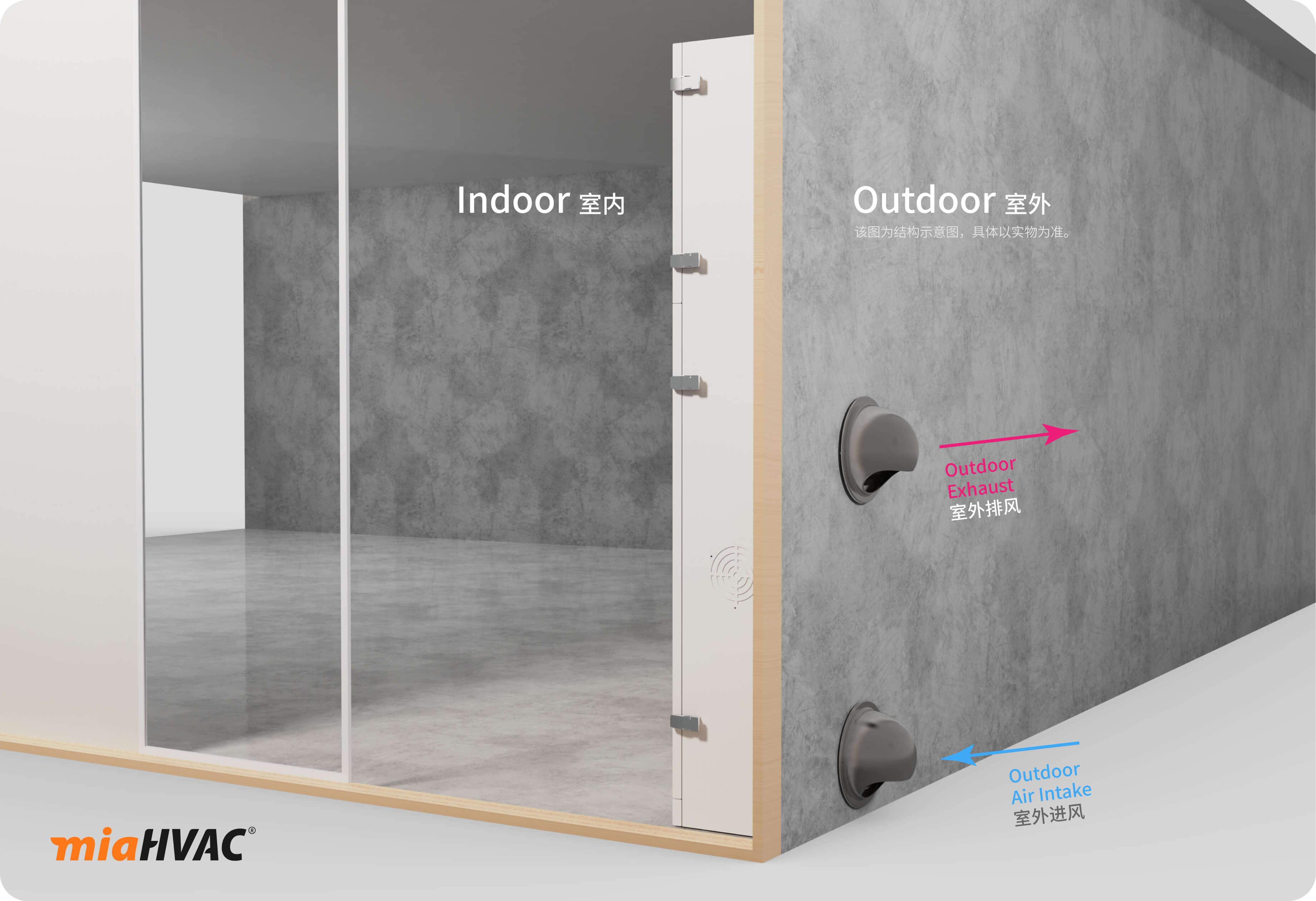

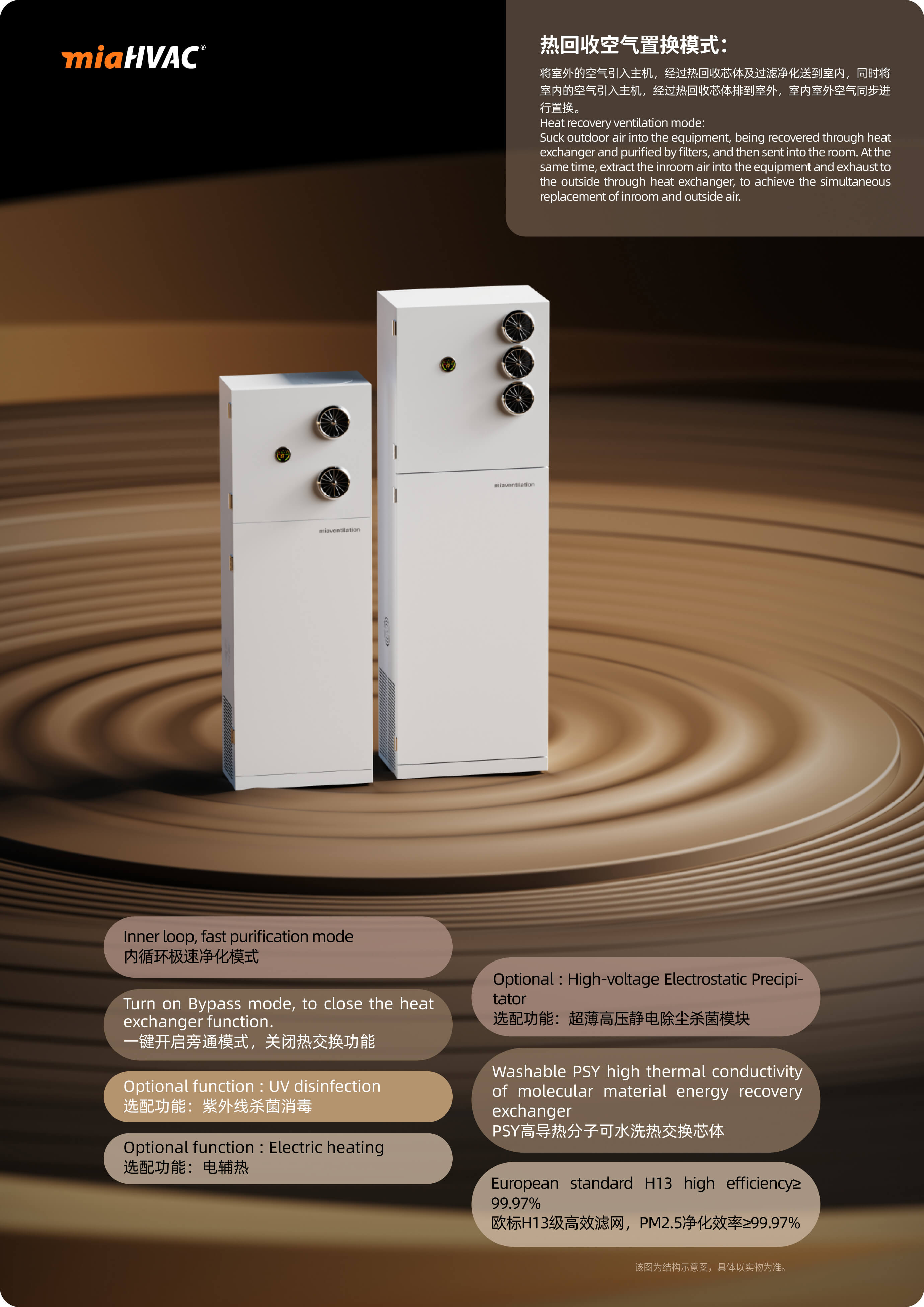

MIA Floor-standing ERV:The upright cabinet-type system is installed openly without ducts, featuring direct air supply. It draws outdoor air into the equipment for filtration, exchanges energy, and then supplies it indoors. Simultaneously, it extracts indoor air for energy recovery and expels it outdoors. This ensures whole-house air purification and replacement while maintaining indoor temperature and humidity. The built-in air valve structure allows for one-button switching between air duct operations, enabling an internal circulation mode. In this mode, the equipment closes the outdoor air duct and only draws indoor air into the equipment for filtration before returning it indoors, achieving rapid indoor air purification. This mode is suitable for use when outdoor air quality is less than ideal. During spring and autumn when the temperature difference between indoors and outdoors is small, the equipment can be activated with one button to enter a bypass mode. In this mode, the air duct is switched to bypass the heat recovery core for energy recovery, allowing the temperature and humidity inside and outside to quickly approach equilibrium. The equipment is equipped with a silent fan, making it suitable for open installation indoors. The filtration section of the upright cabinet-type fresh air system can be equipped with a washable pre-filter, a HEPA high-efficiency filter, a high-voltage electrostatic precipitation module, and an optional PTC electric heating function for rapid indoor heating in winter. The equipment features a washable heat exchange core with sufficient ventilation area. It is available in a remote control version, and an external wired controller and an intelligent WIFI controller for air quality monitoring can also be added. Sensors such as PM2.5+CO2+VOC monitor indoor air quality in real time, and RS485 support is optional for centralized control in commercial buildings.

MIA米亚立柜式全热交换新风机：立柜式无管道明装，直出风式送风，将室外的空气抽入设备中，进行过滤，能量交换后送入室内，同时将室内的空气抽入设备中，进行能量回收后排出室外，实现在保持室内温湿度的同时进行全屋空气净化置换。内置风阀结构可一键切换风道运行，实现内循环模式，此时设备关闭室外风道，仅将室内的空气吸入设备中进行过滤后再送回室内，达到快速净化室内空气的效果，适合在室外空气质量比较不理想的情况下使用这个模式。春秋季室内外温差较小的情况下，设备可一键开启旁通模式，此时风道切换为空气不再经过热回收芯体进行能量回收，可以尽快让室内外的温湿度接近一致。设备配备静音型风机，适合在室内进行明装。立柜式新风系统过滤段可选配可水洗初效滤网、HEPA高效滤网、高压静电除尘模块，还可以选配PTC电加热功能，在冬天可以对室内进行快速制热；设备配备充足通风面积可水洗热交换芯体；设备有遥控控制版本，也可以选配外接线控器，空气质量监测智能WIFI控制器，PM2.5+CO2+VOC等传感器实时监测室内空气质量，支持选配RS485，可以实现商用楼宇集中控制。

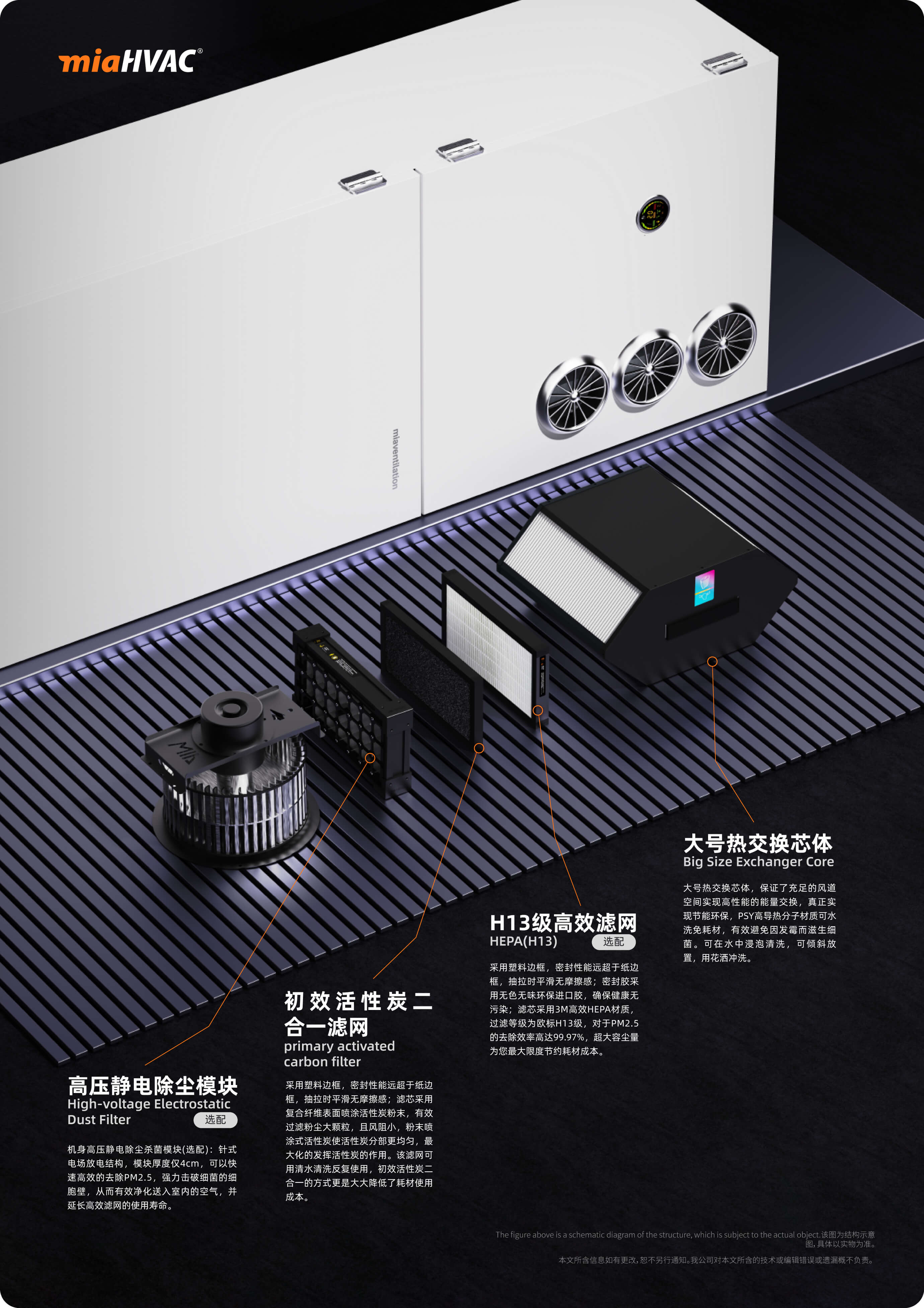

PSY high thermal conductivity molecular exchanger: high efficiency, washable.

PSY高导热分子热回收芯体：热回收效率高，可水洗免耗材。

High-voltage Electrostatic Precipitator：The high-voltage electrostatic precipitator adopts the pin-type electric field discharge method to replace the traditional tungsten wire high-voltage removal method. The thickness is only 4cm, suitable for various kinds of our models, PM2.5 removal rate is highly to 98%. Also it can effectively kill bacteria to prevent the infection. It can be washed or cleaned with brush, no need to be replaced, greatly save the cost.

高压静电除尘杀菌模块：采用针式电场放电方式，代替传统钨丝高压静电集尘方式，模块厚度仅为4cm，可灵活适用于各种机型，对于PM2.5的去除效率高达98%。维护时可用清水进行湿洗，也可以用毛刷刷去集尘格中的灰尘，无耗材产生可反复使用，无需担心使用成本。

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。

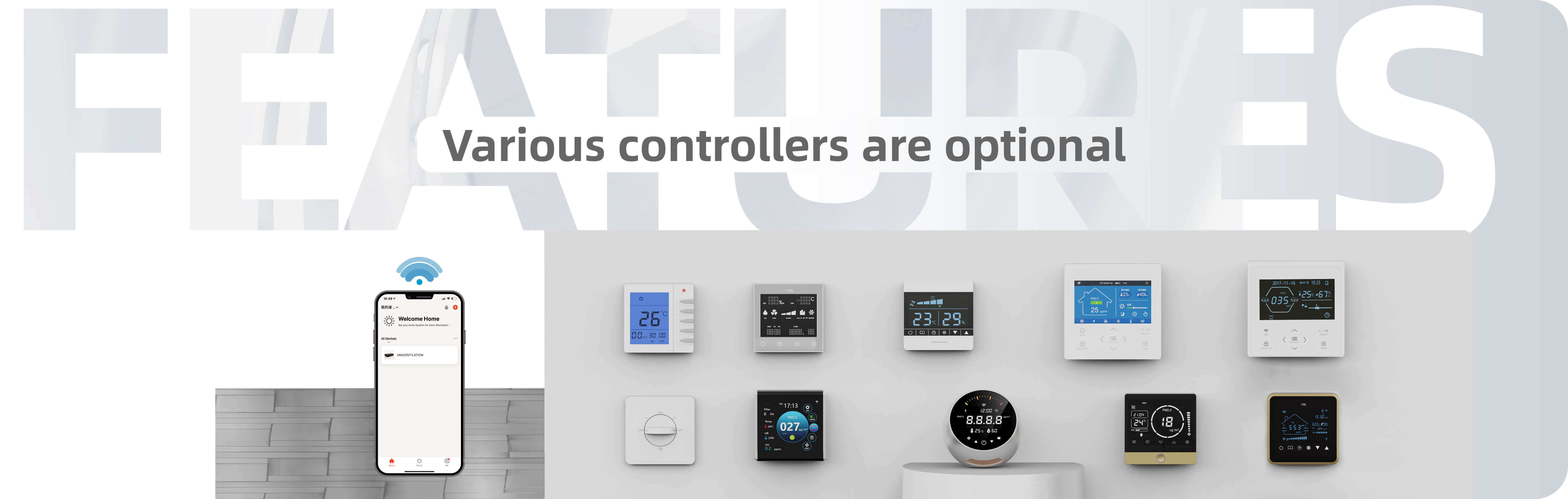

Support optional intelligent WIFI controller, PM2.5，CO2，TVOC， Real time monitoring of temperature and humidity, equipped with RS485 to support centralized control of buildings, can meet the needs of various usage scenarios.

支持选配智能WIFI控制器，PM2.5，CO2，TVOC，温湿度实时监测，选配RS485可支持楼宇集中控制，可以满足各种使用场景需求。
