MIA Wall-mounted ERV

MIA米亚壁挂式全热交换新风机

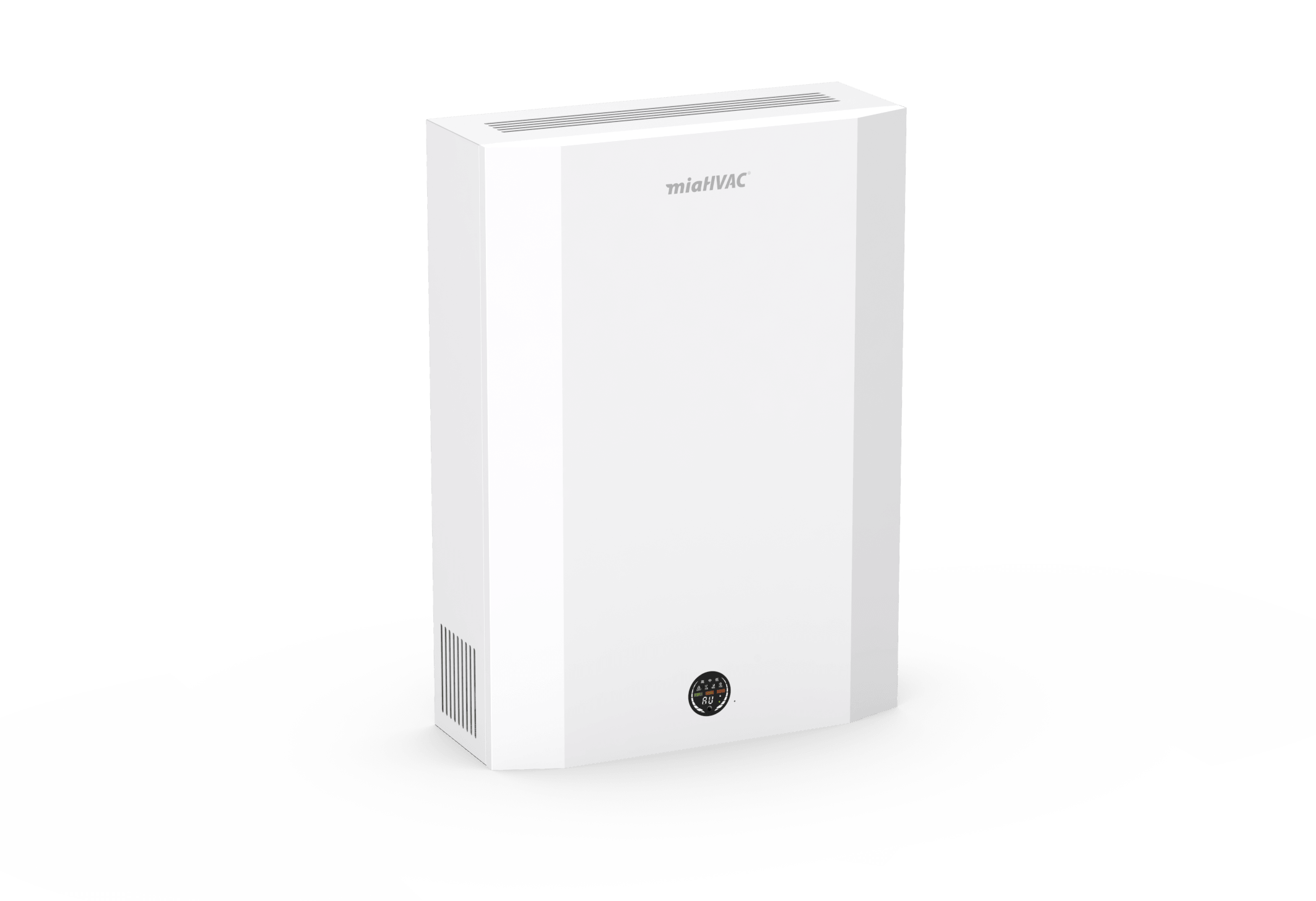

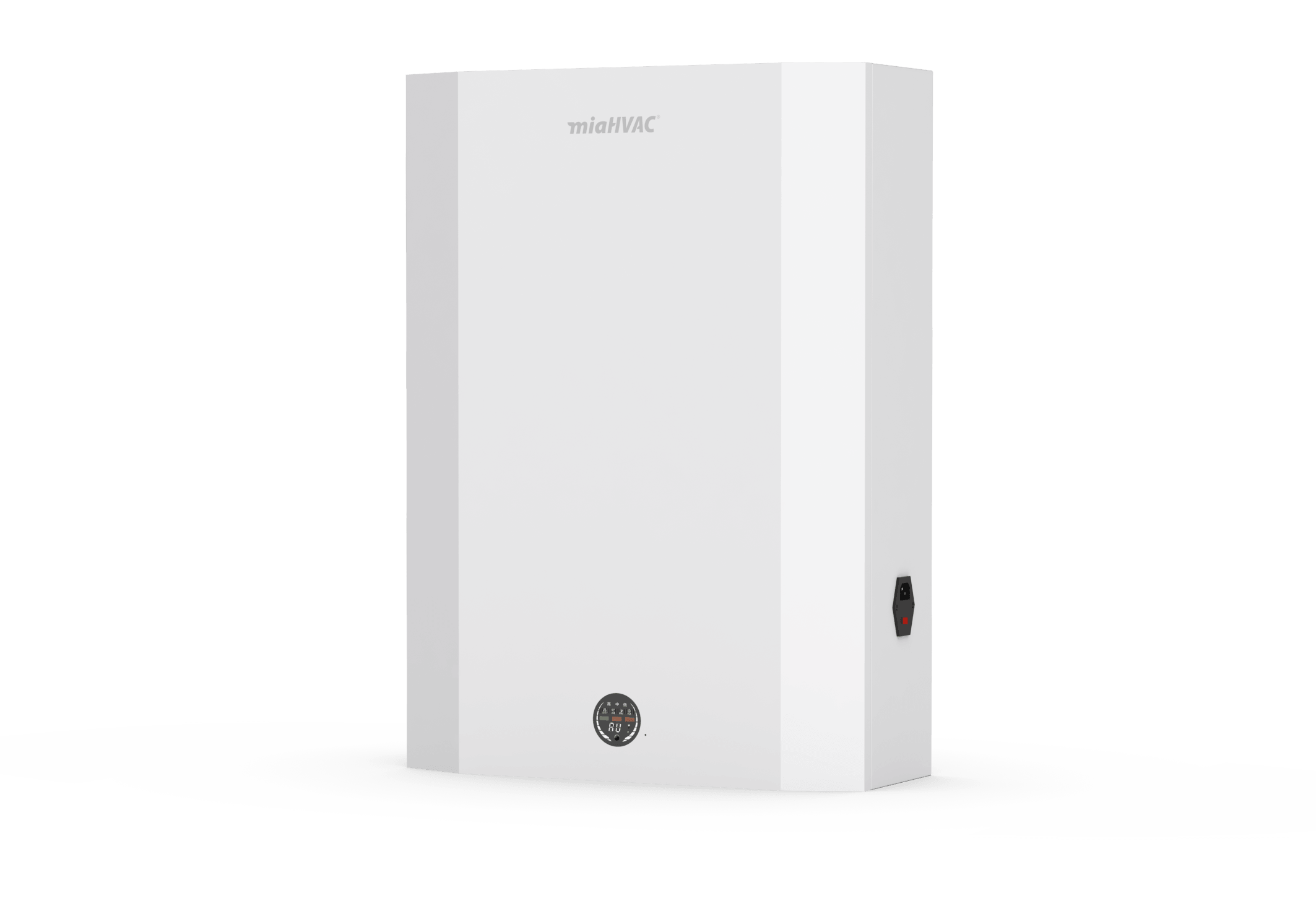

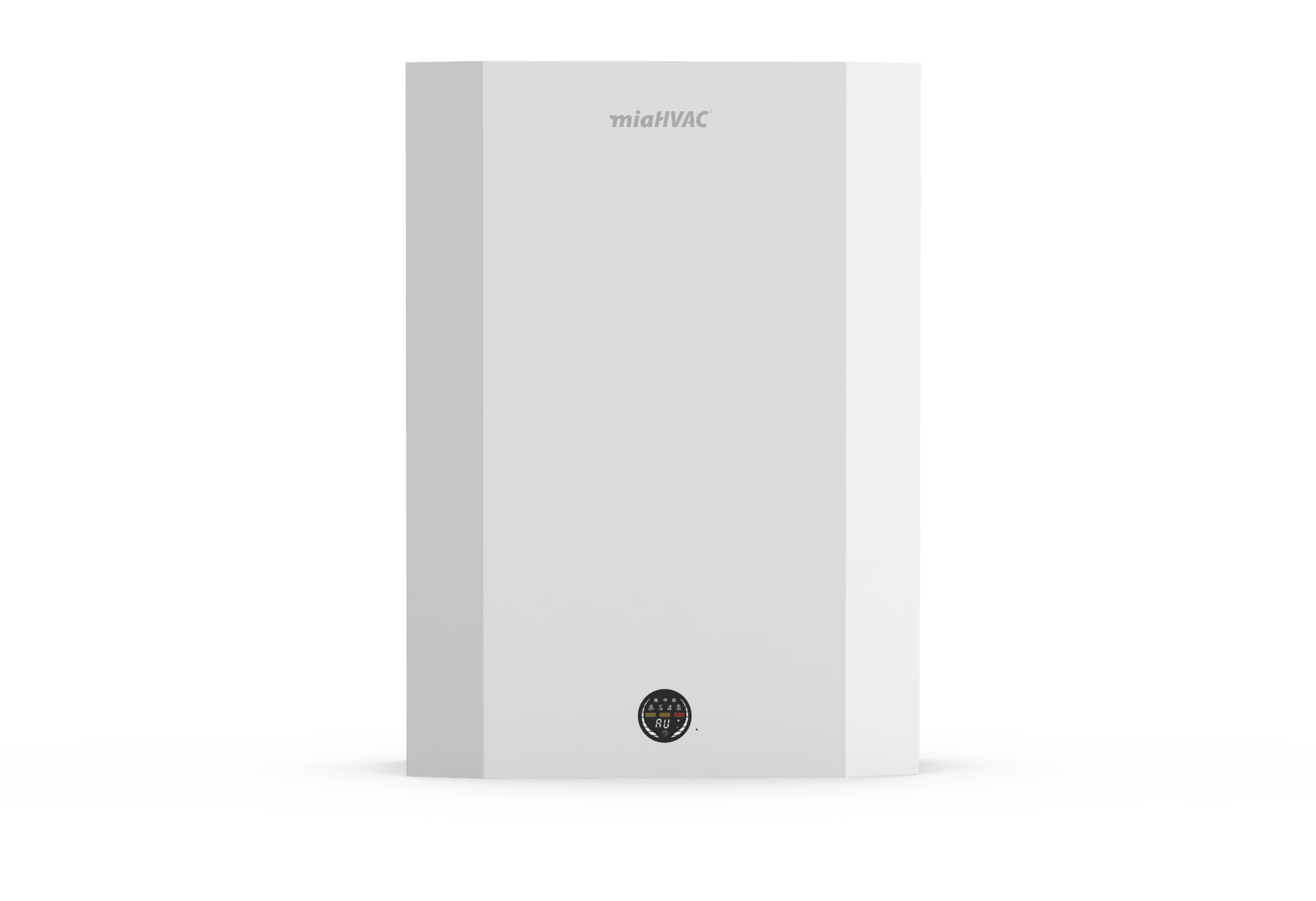

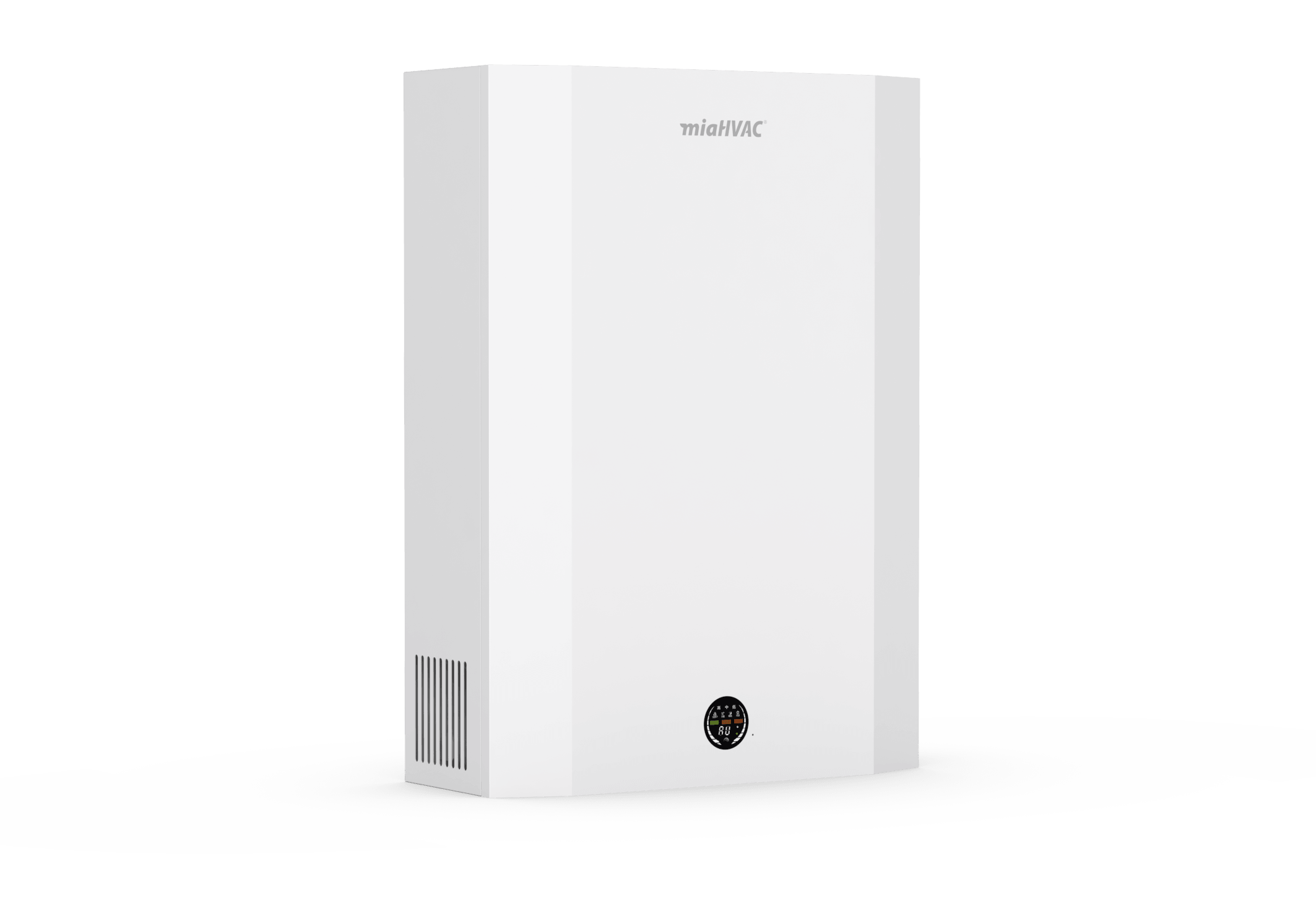

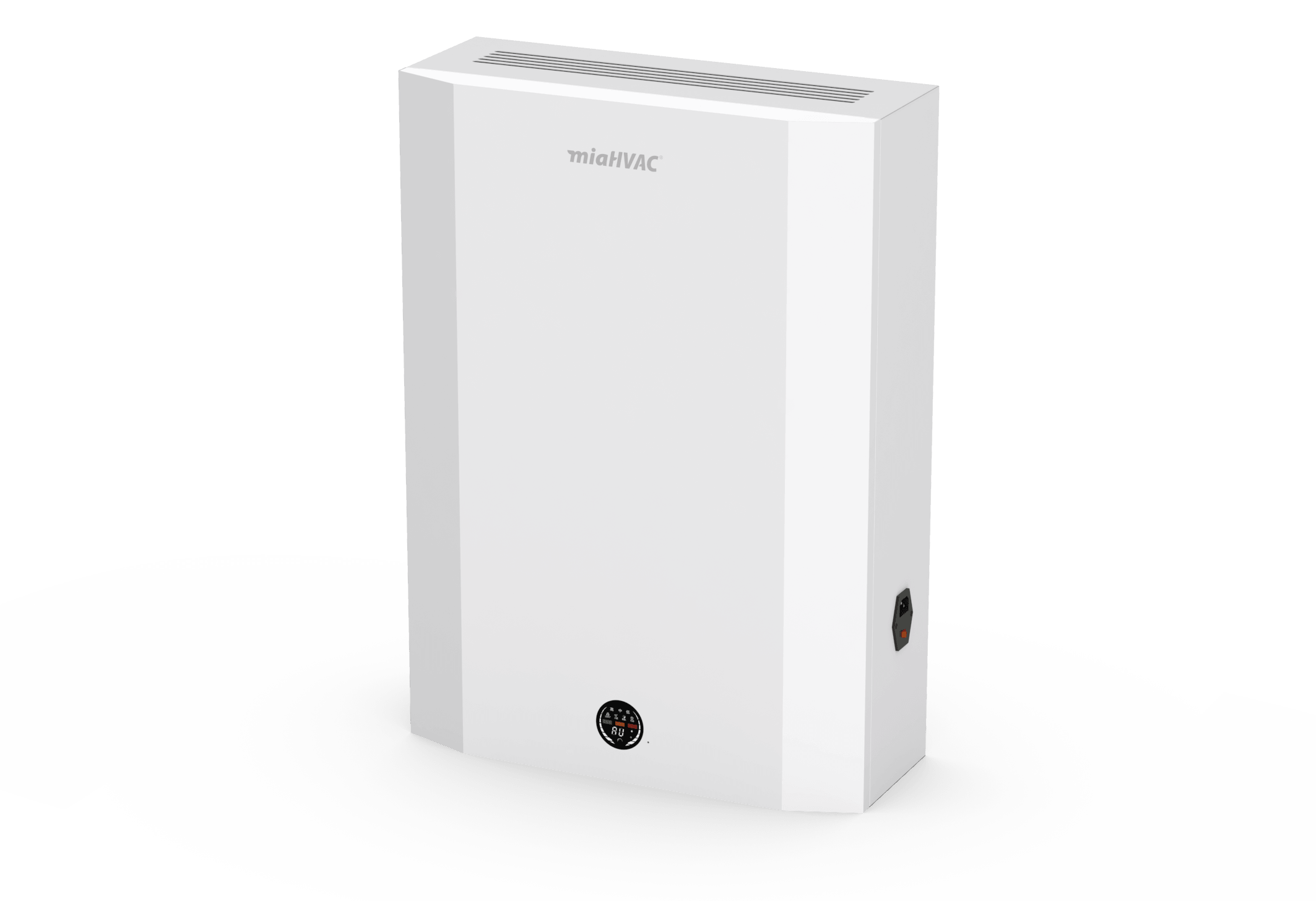

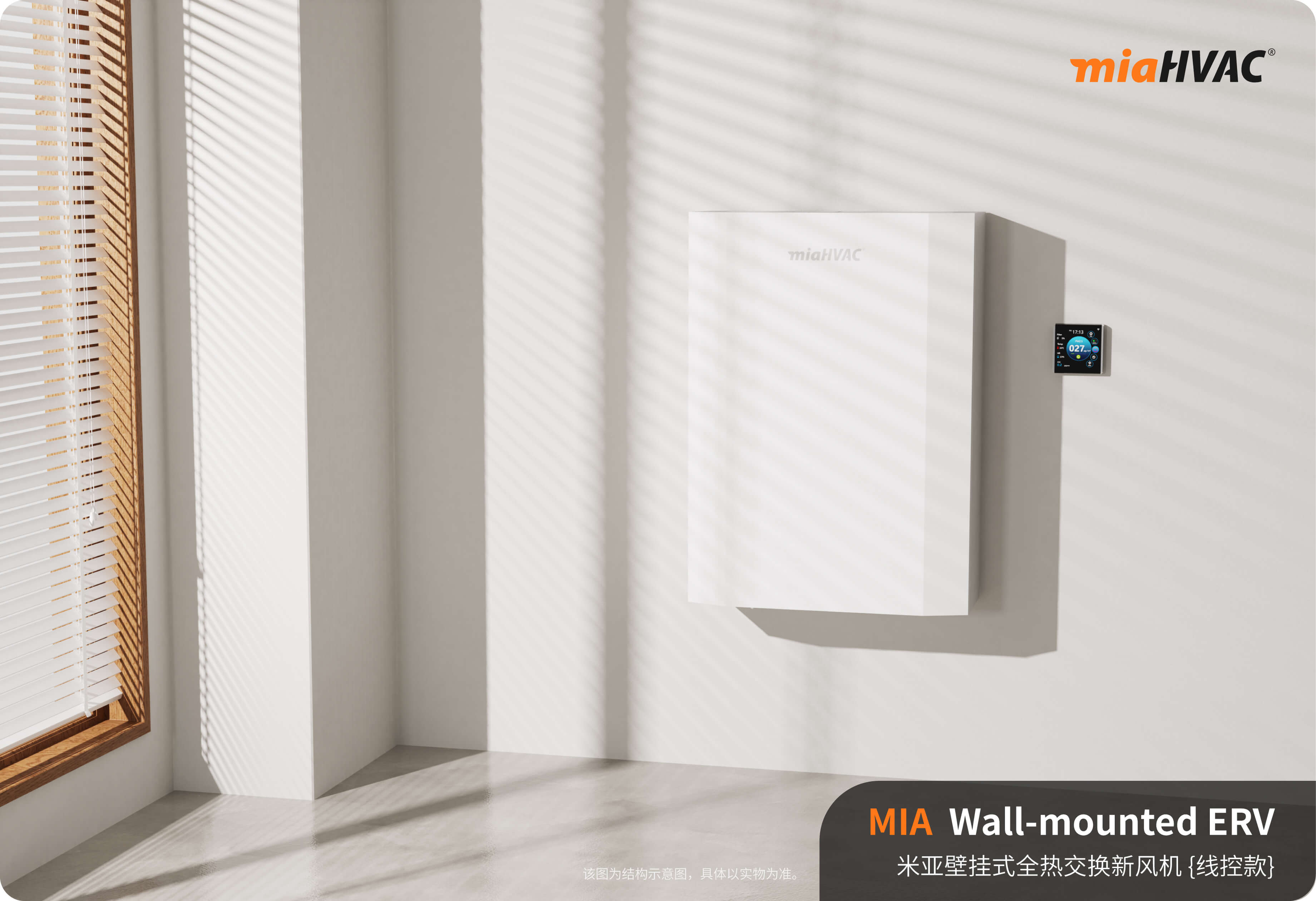

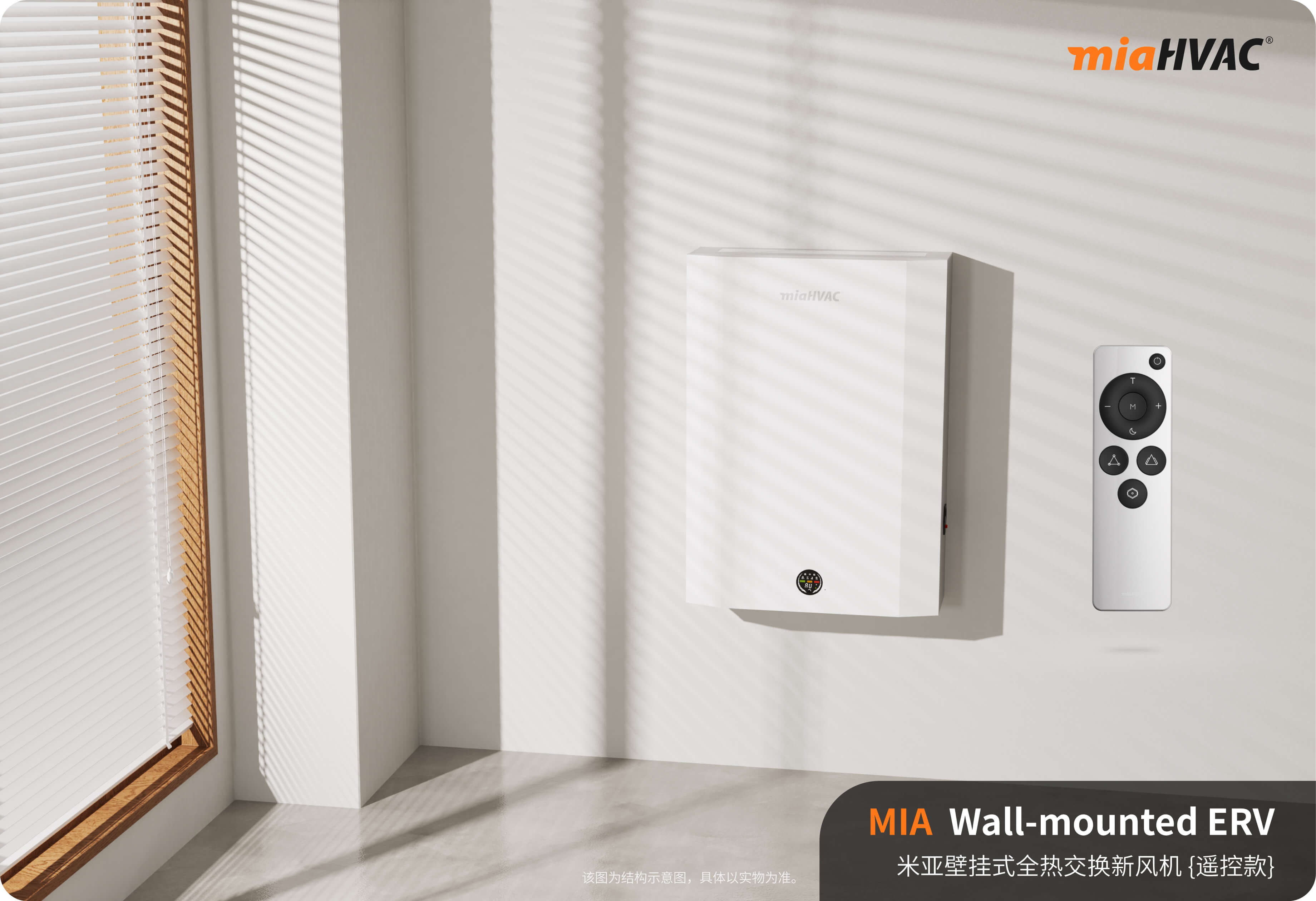

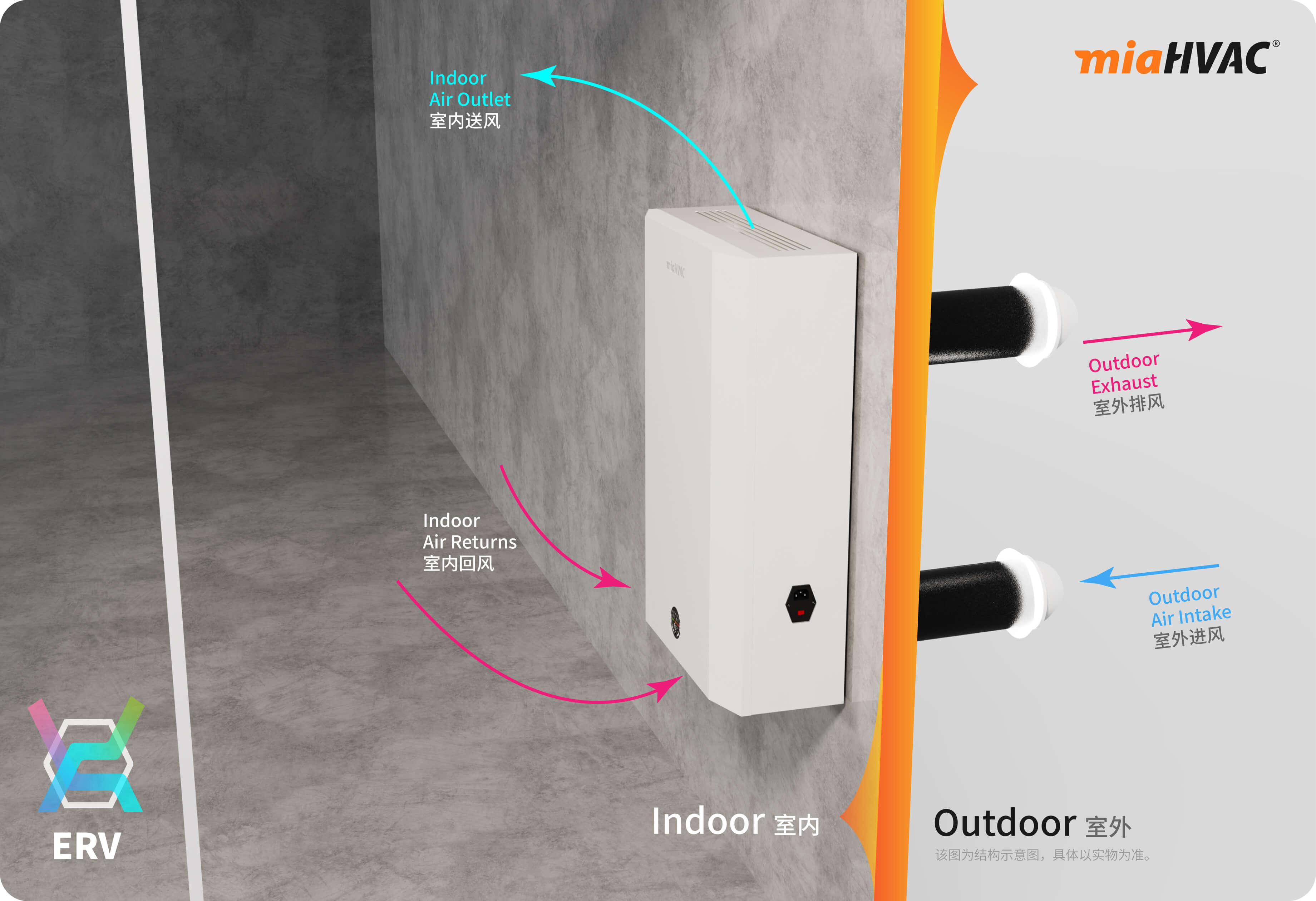

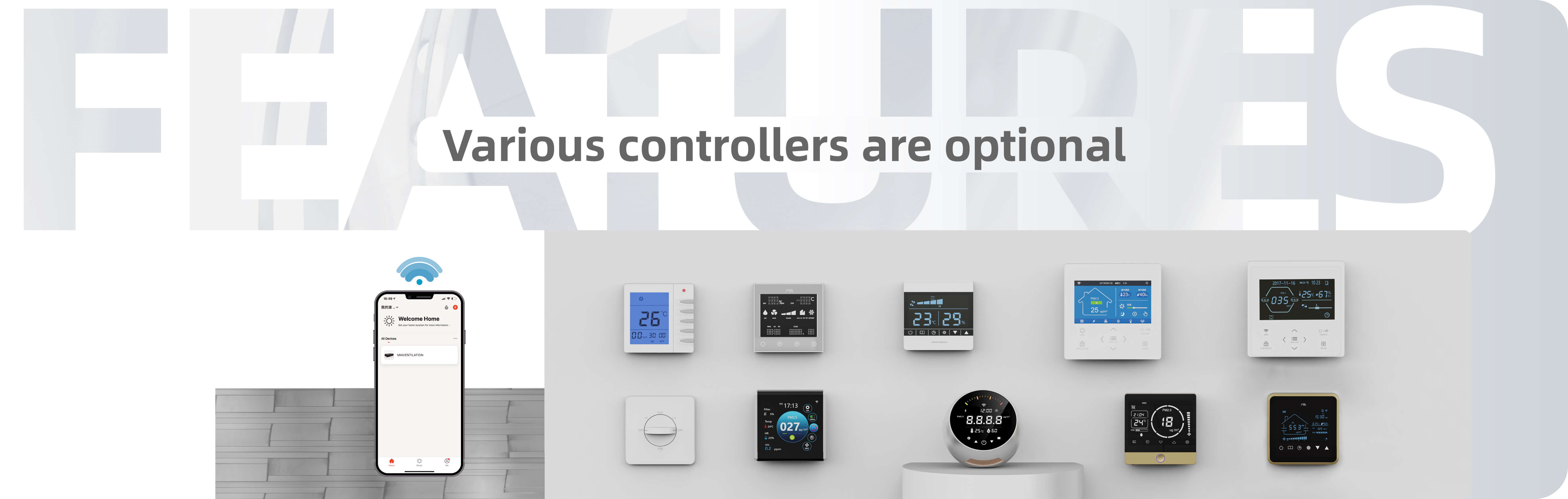

MIA Wall-mounted ERV:This wall-mounted, ductless unit features direct air supply & exhaust. It draws in outdoor air, filters it, performs energy exchange, and supplies the clean air indoors; simultaneously, it extracts indoor air, recovers energy from it, and vents it outdoors, thereby achieving whole-house air purification and exchange while maintaining indoor temperature and humidity. Equipped with a quiet fan, the unit is suitable for exposed wall-mounted installation. The filtration section offers optional configurations, including washable pre-filters, high-efficiency HEPA filters, and high-voltage electrostatic precipitator. This unit features a washable heat exchange core with ample ventilation area. It is available in a remote-controlled version and offers optional accessories such as a wired wall controller and a smart Wi-Fi controller with air quality monitoring; sensors for PM2.5, CO2, and VOCs provide real-time indoor air quality monitoring. RS485 connectivity is also available as an option to enable centralized control in commercial buildings.

MIA米亚壁挂式全热交换新风机：壁挂式无管道明装，直出风式送风，将室外的空气抽入设备中，进行过滤，能量交换后送入室内，同时将室内的空气抽入设备中，进行能量回收后排出室外，实现在保持室内温湿度的同时进行全屋空气净化置换。设备配备静音型风机，适合在室内进行明装。壁挂式新风系统过滤段可选配可水洗初效滤网、HEPA高效滤网、高压静电除尘模块；设备配备充足通风面积可水洗热交换芯体；设备有遥控控制版本，也可以选配外接线控器，空气质量监测智能WIFI控制器，PM2.5+CO2+VOC等传感器实时监测室内空气质量，支持选配RS485，可以实现商用楼宇集中控制。

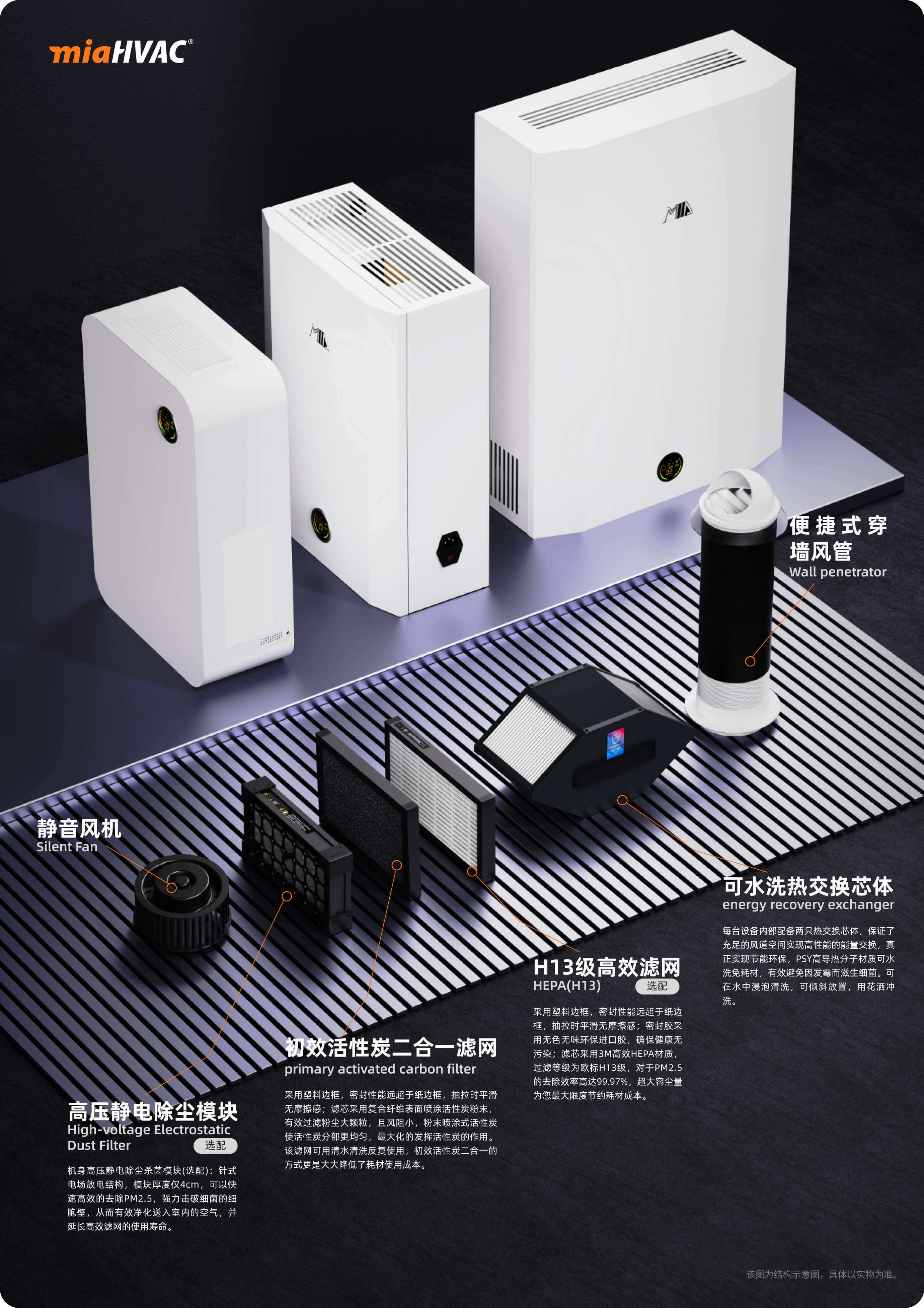

PSY high thermal conductivity molecular exchanger: high efficiency, washable.

PSY高导热分子热回收芯体：热回收效率高，可水洗免耗材。

High-voltage Electrostatic Precipitator：The high-voltage electrostatic precipitator adopts the pin-type electric field discharge method to replace the traditional tungsten wire high-voltage removal method. The thickness is only 4cm, suitable for various kinds of our models, PM2.5 removal rate is highly to 98%. Also it can effectively kill bacteria to prevent the infection. It can be washed or cleaned with brush, no need to be replaced, greatly save the cost.

高压静电除尘杀菌模块：采用针式电场放电方式，代替传统钨丝高压静电集尘方式，模块厚度仅为4cm，可灵活适用于各种机型，对于PM2.5的去除效率高达98%。维护时可用清水进行湿洗，也可以用毛刷刷去集尘格中的灰尘，无耗材产生可反复使用，无需担心使用成本。

High Efficiency Particulate Air (HEPA-H13) Filter：The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.

H13级HEPA高效滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；密封胶采用无色无味环保进口胶，确保健康无污染；滤芯采用3M高效HEPA材质，过滤等级为欧标H13级，对于PM2.5的去除效率高达99.97%，超大容尘量为您最大限度节约耗材成本。

Primary Activated Carbon Filter：The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.

初效活性炭二合一滤网：采用塑料边框，密封性能远超于纸边框，抽拉时平滑无摩擦感；滤芯采用复合纤维表面喷涂活性炭粉末，有效过滤粉尘大颗粒，且风阻小，粉末喷涂式活性炭使活性炭分部更均匀，最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用，初效活性炭二合一的方式更是大大降低了耗材使用成本。
