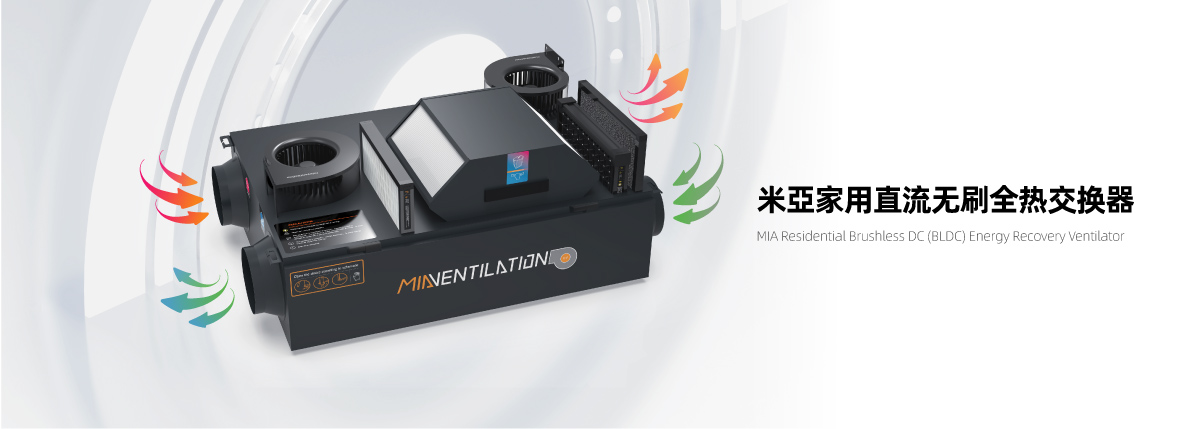

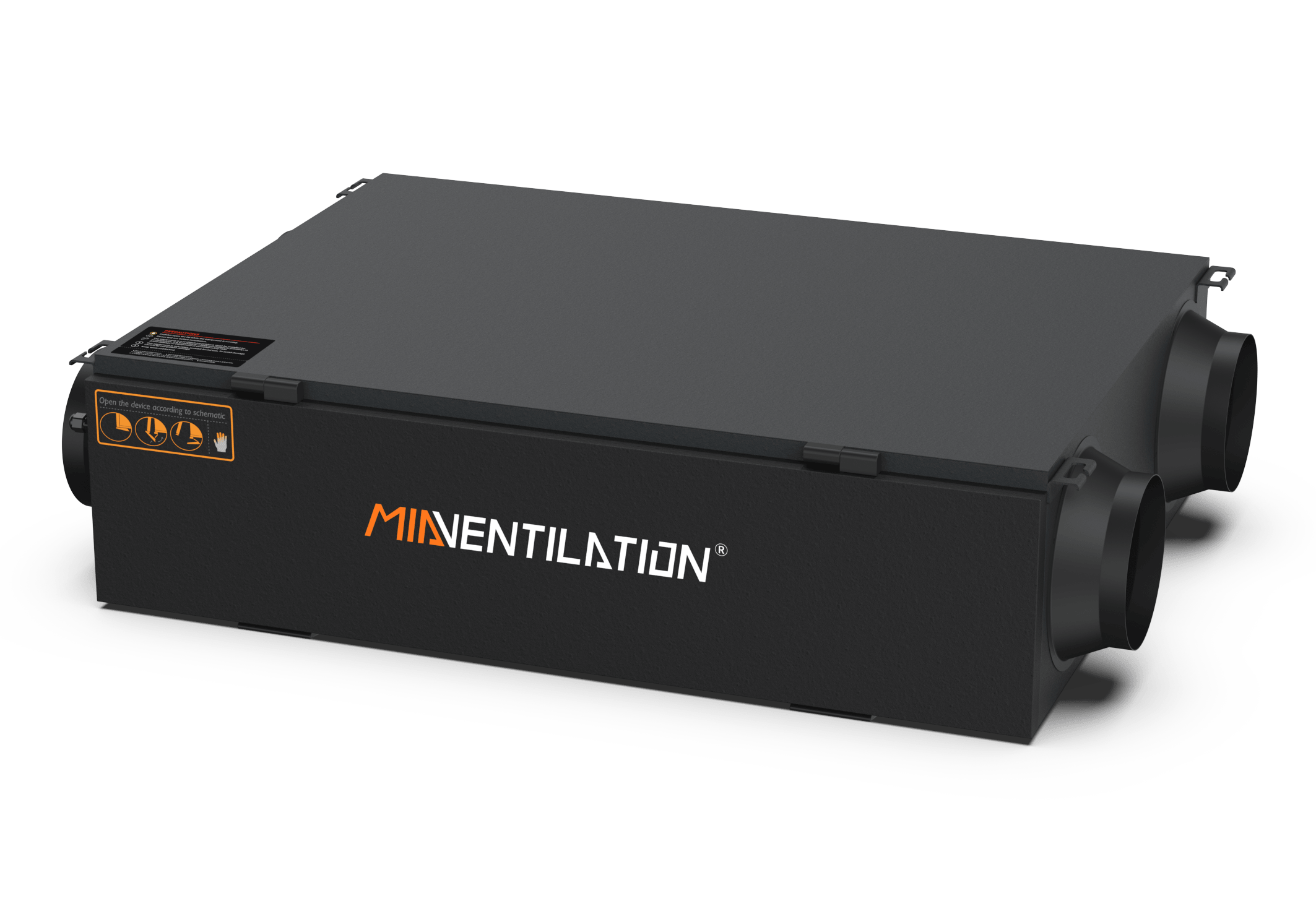

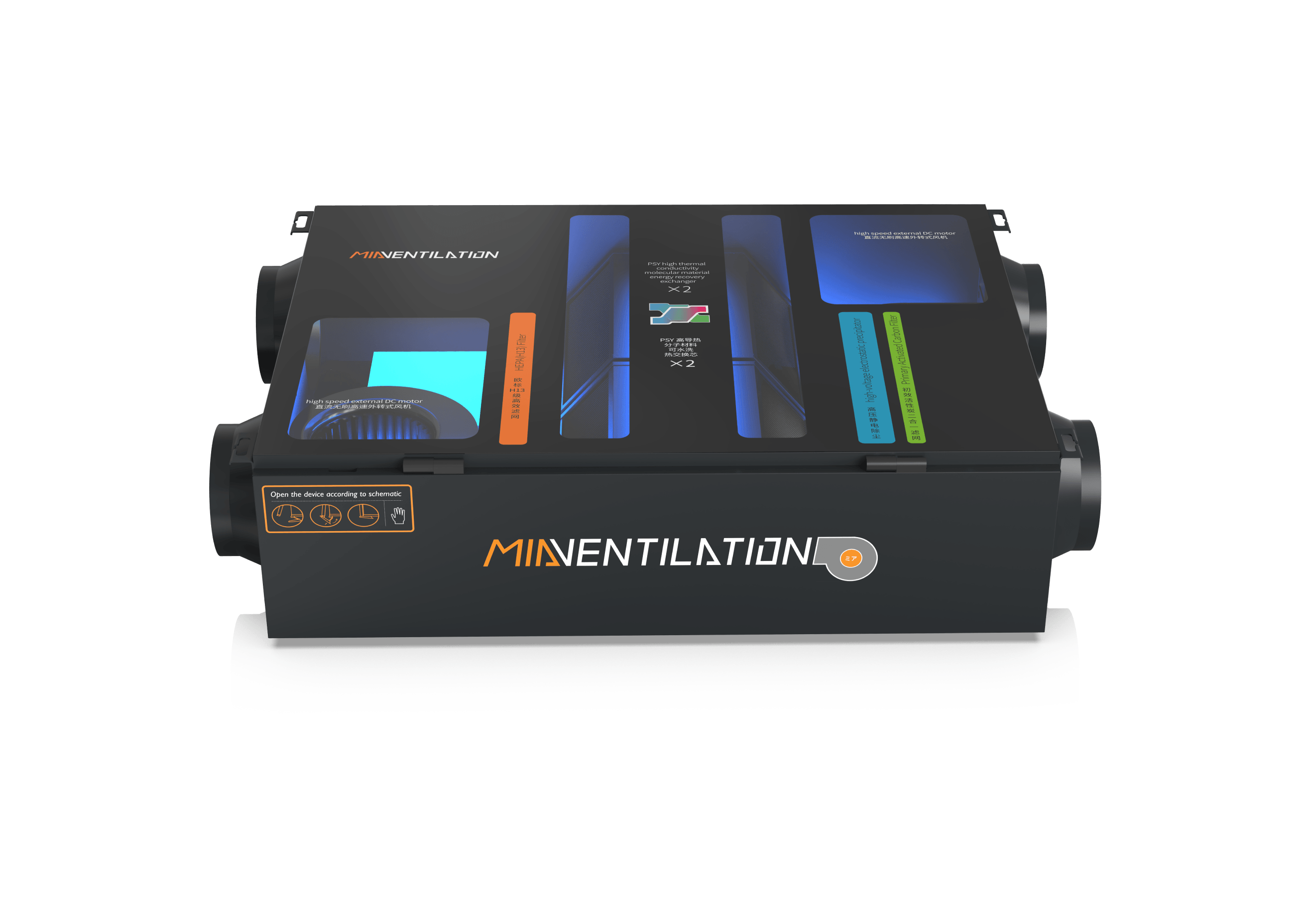

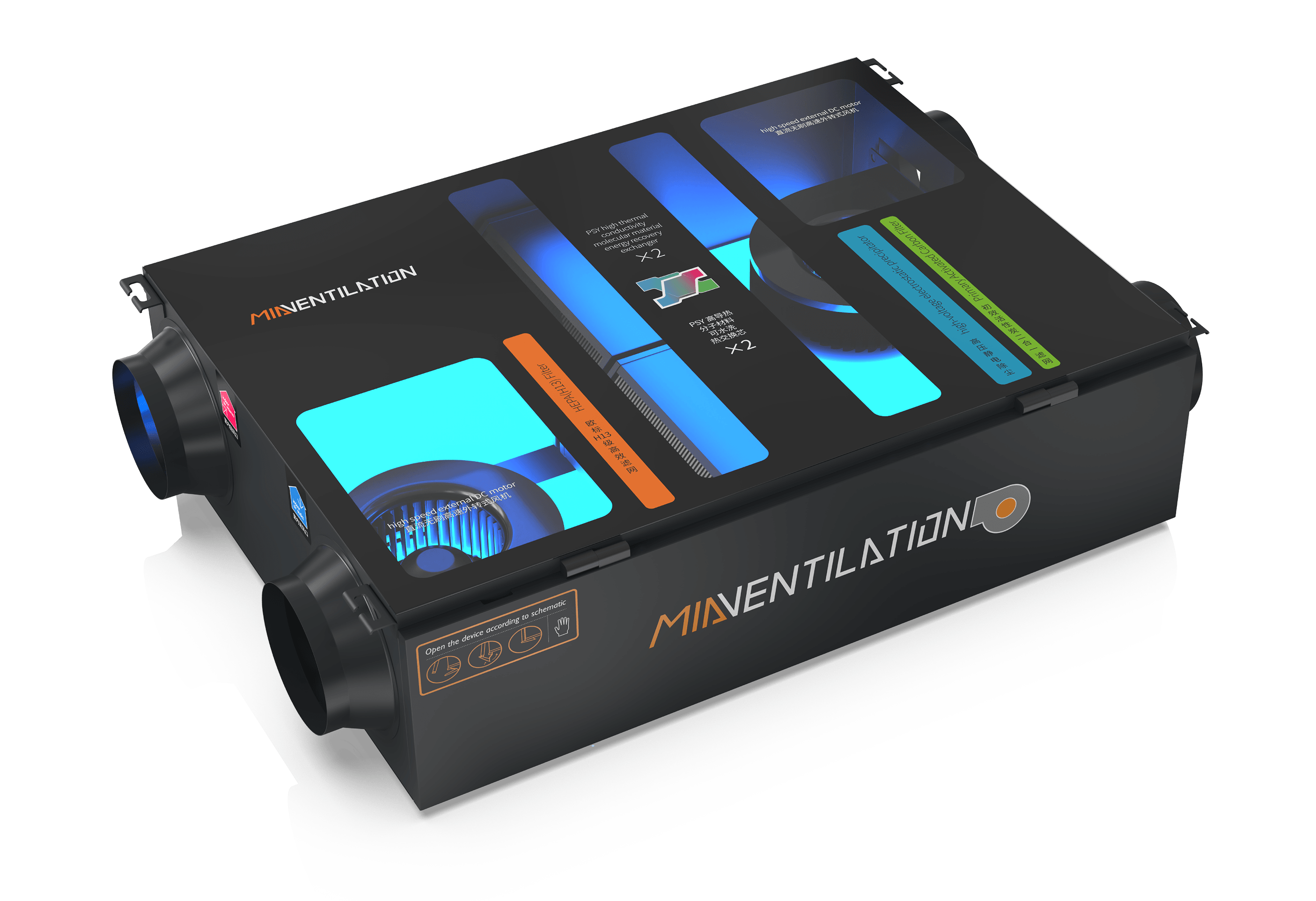

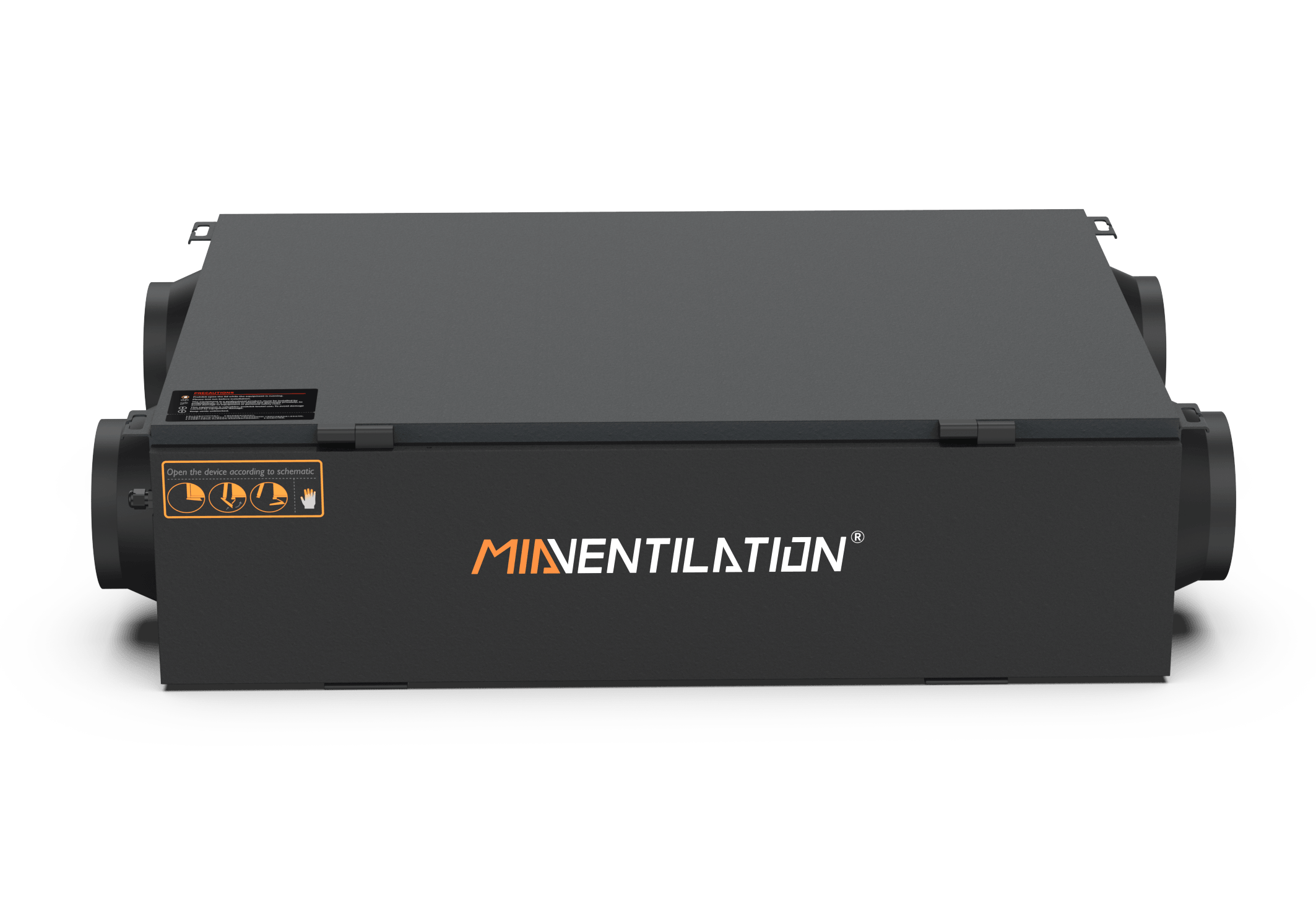

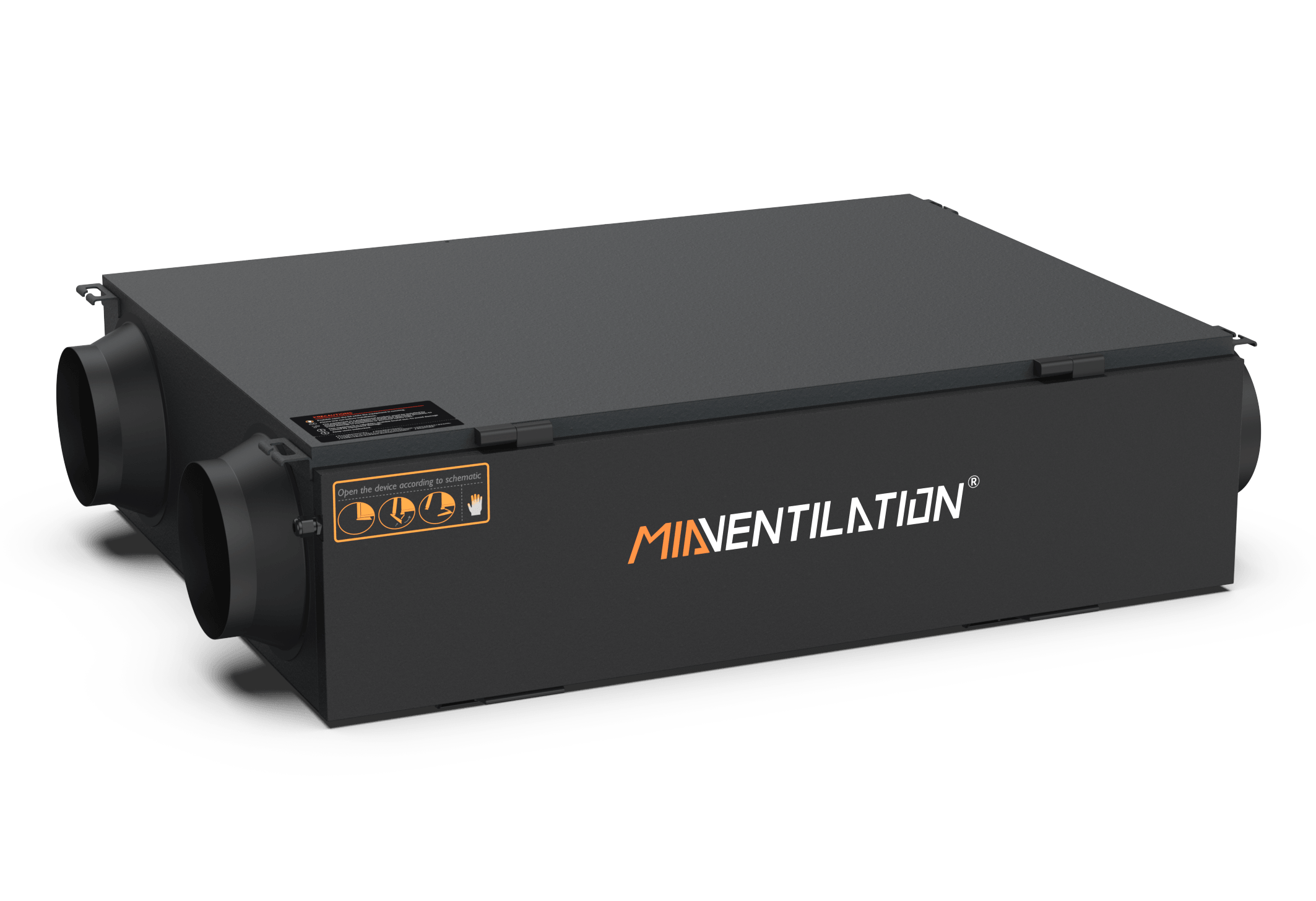

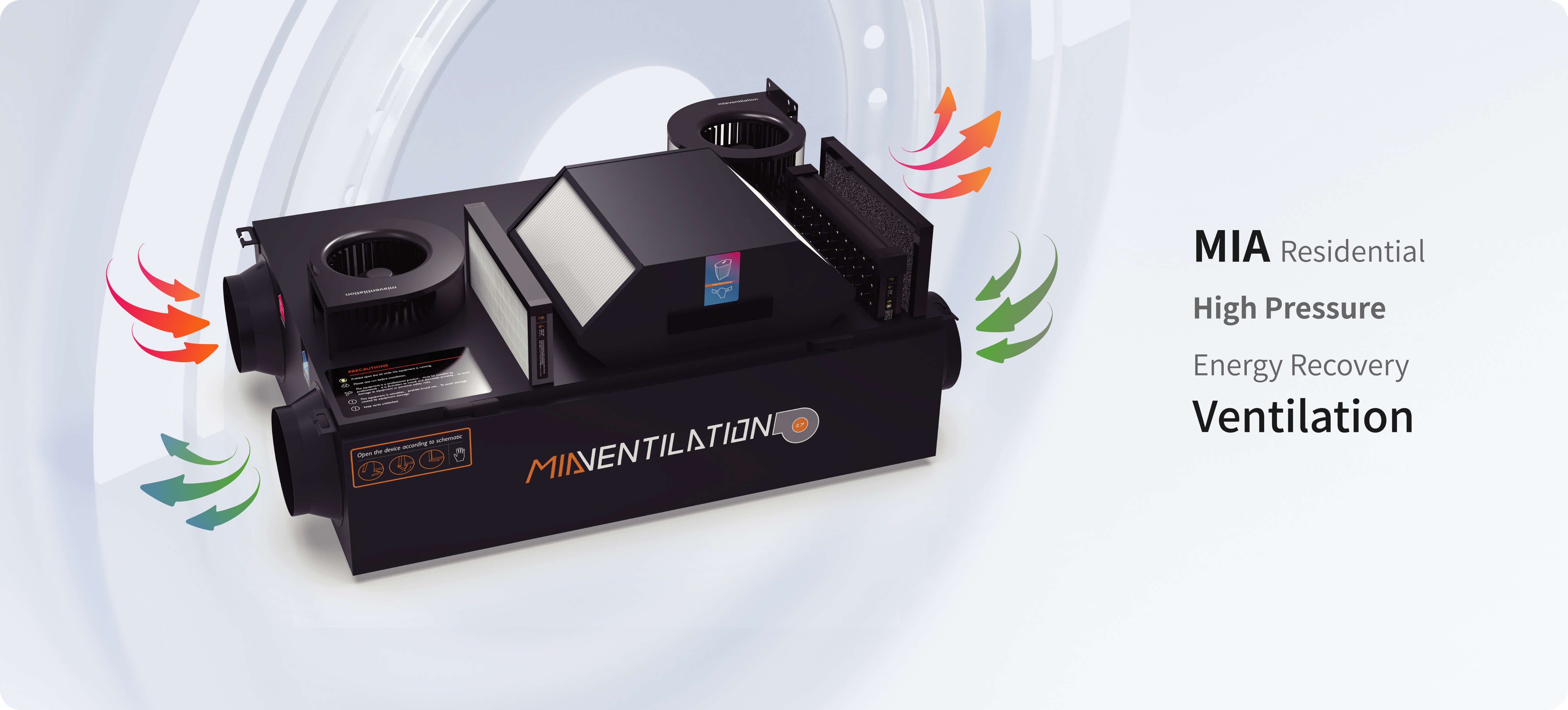

| Energy Recovery Ventilation(filter configuration: primanyactivatedcarbonfilter)吊顶全热交换器(过滤配置:初效活性炭二合一滤网) | ||||||||
|---|---|---|---|---|---|---|---|---|
| DC brushless model 直流无刷机型 | AC motor model 交流电机机型 | |||||||
|
model 型号 |
MIA-AHE15NB/C | MIA-AHE25NB/C | MIA-AHE35NB/C | MIA-AHE50NB/C | MIA-AHE15NB | MIA-AHE25NB | MIA-AHE35NB | MIA-AHE50NB |
|
voltage 电压 |
220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
|
power 功率 |
92W | 166W | 233W | 288W | 122W | 178W | 246W | 453W |
|
volume 风量 |
150m³/h | 250m³/h | 350m³/h | 500m³/h | 150m³/h | 250m³/h | 350m³/h | 500m³/h |
|
pressure 静压 |
290Pa | 370Pa | 392Pa | 425Pa | 290Pa | 370Pa | 392Pa | 425Pa |
|
efficiency 热回收率 |
86%~92% | 86%~89% | 85%~88% | 84%~87% | 86%~92% | 86%~89% | 85%~88% | 84%~87% |
|
noise 噪音 |
30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) | 30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) |
|

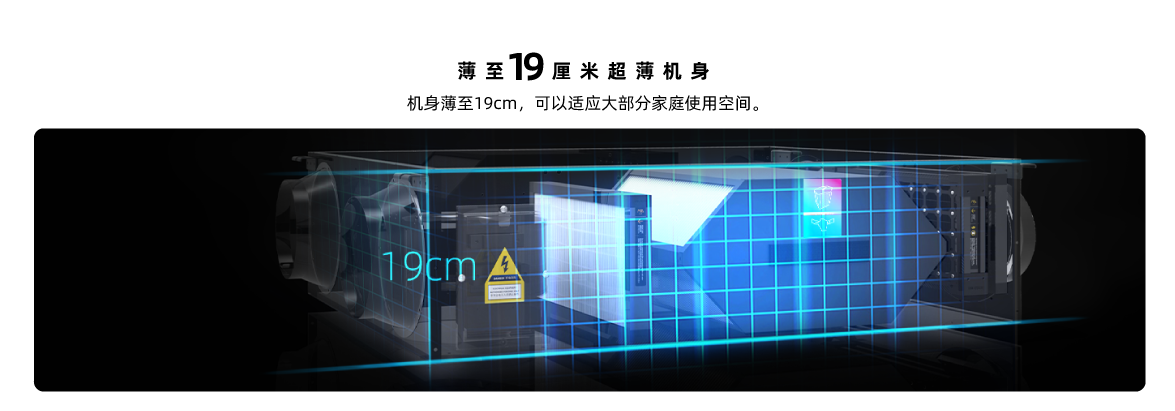

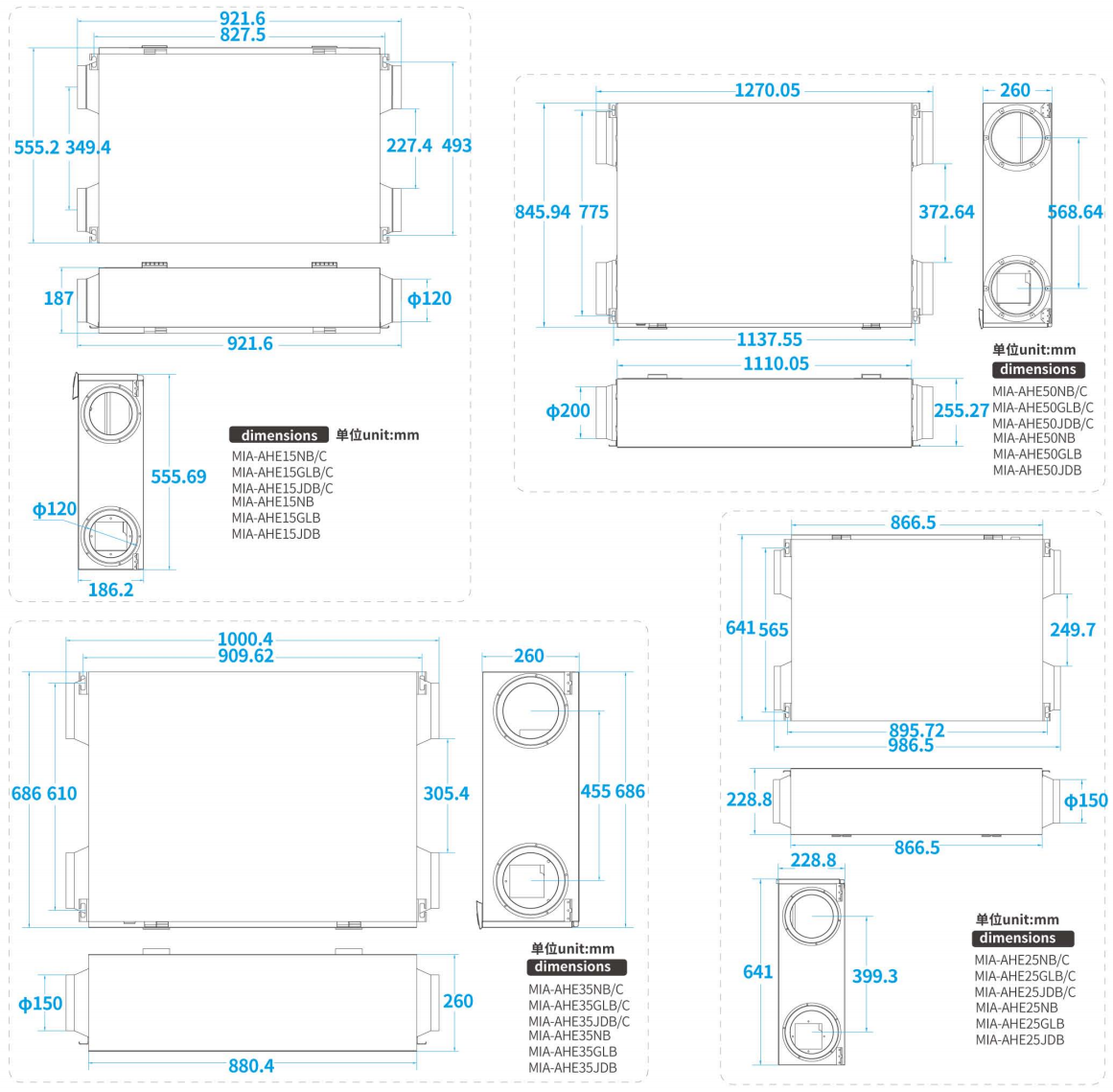

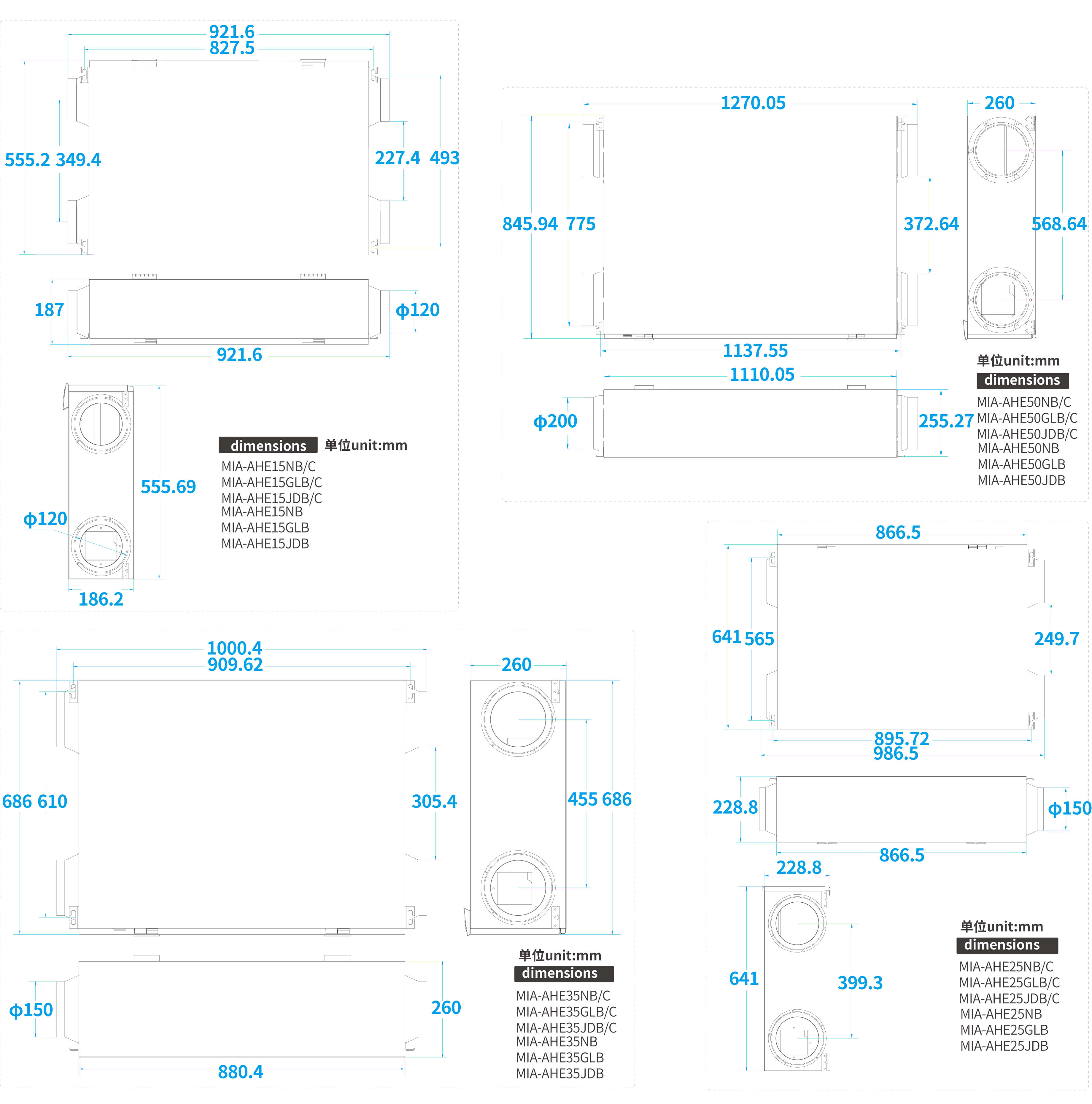

a×b×c 长宽高 |
800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ | 800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ |
|
flange 法兰风口 |
Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ | Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ |
|
weight 净重 |
19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ | 19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ |

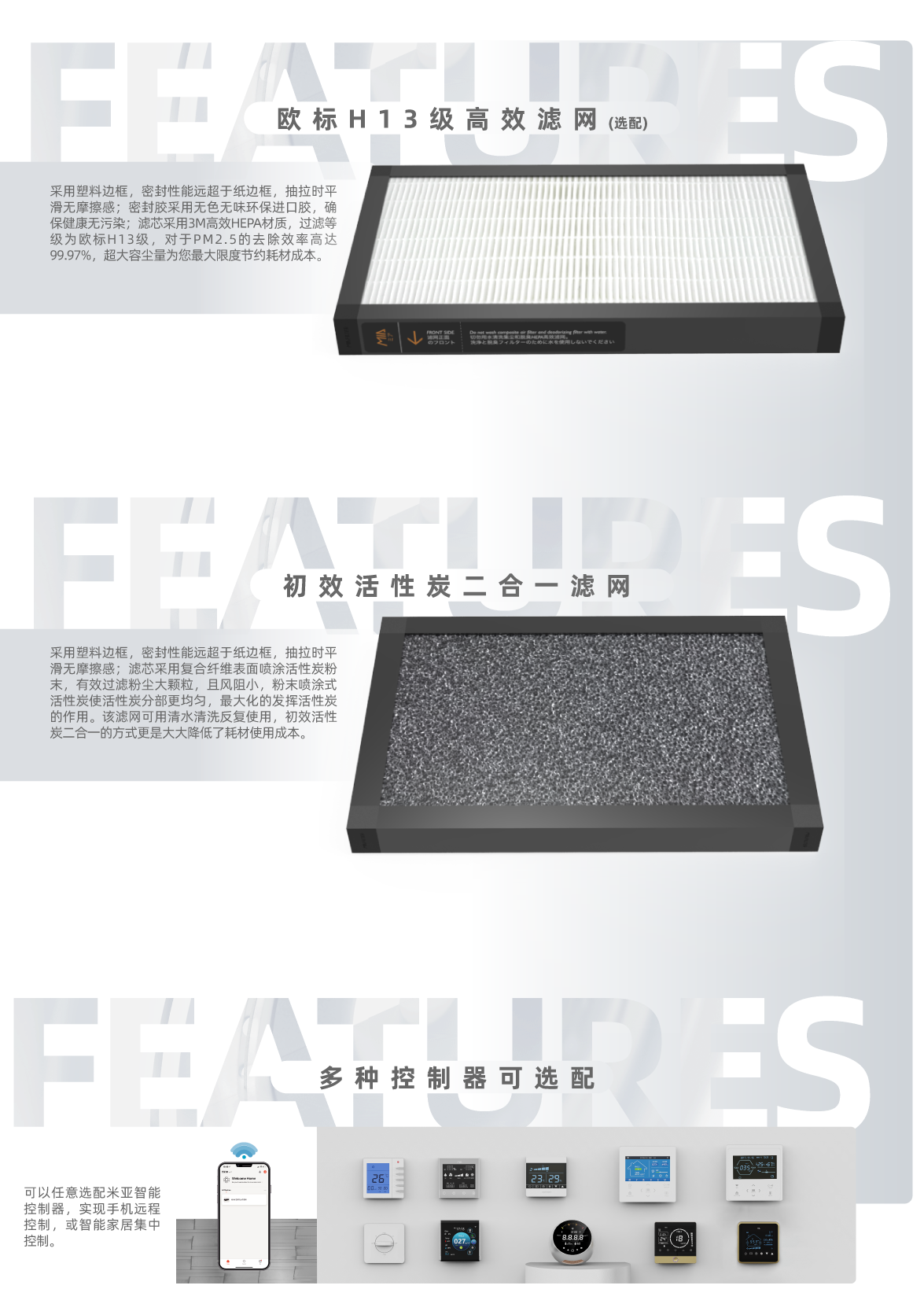

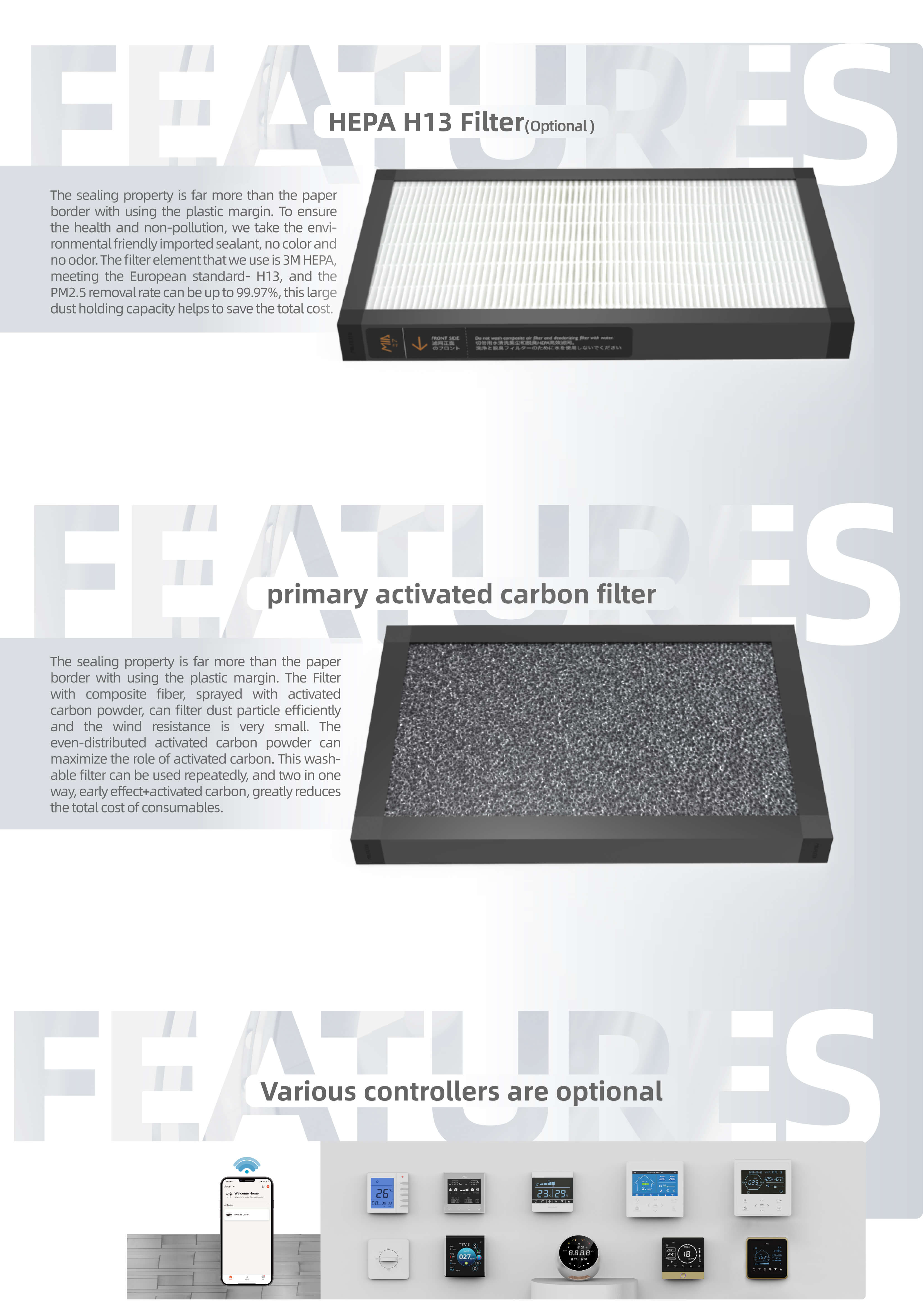

| ERV with Multiple Filters(filer conieuraton: pimay activated carbon filter+HEPA) pm2.5多重过滤全热交换器(过滤配置：初效活性炭二合一滤网+HEPA高效滤网) | ||||||||
|---|---|---|---|---|---|---|---|---|
| DC brushless model 直流无刷机型 | AC motor model 交流电机机型 | |||||||
|
model 型号 |
MIA-AHE15GLB/C | MIA-AHE25GLB/C | MIA-AHE35GLB/C | MIA-AHE50GLB/C | MIA-AHE15GLB | MIA-AHE25GLB | MIA-AHE35GLB | MIA-AHE50GLB |
|
voltage 电压 |
220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
|
power 功率 |
98W | 176W | 241W | 306W | 130W | 182W | 265W | 462W |
|
volume 风量 |
150m³/h | 250m³/h | 350m³/h | 500m³/h | 150m³/h | 250m³/h | 350m³/h | 500m³/h |
|
pressure 静压 |
285Pa | 360Pa | 385Pa | 420Pa | 285Pa | 360Pa | 385Pa | 420Pa |
|
efficiency 热回收率 |
86%~92% | 86%~89% | 85%~88% | 84%~87% | 86%~92% | 86%~89% | 85%~88% | 84%~87% |
|
noise 噪音 |
30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) | 30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) |
|
a×b×c 长宽高 |
800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ | 800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ |
|
flange 法兰风口 |
Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ | Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ |
|
weight 净重 |
19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ | 19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ |

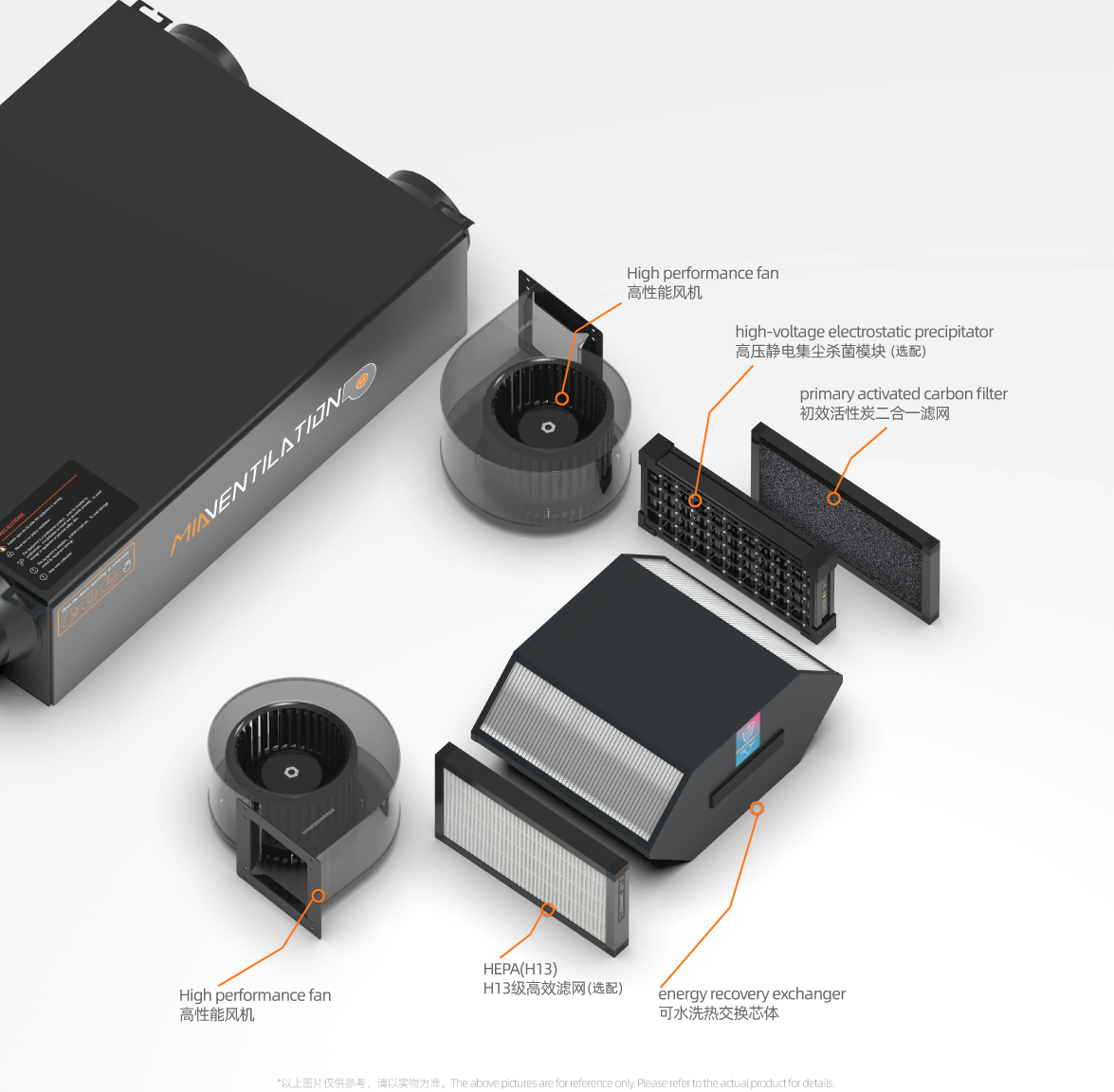

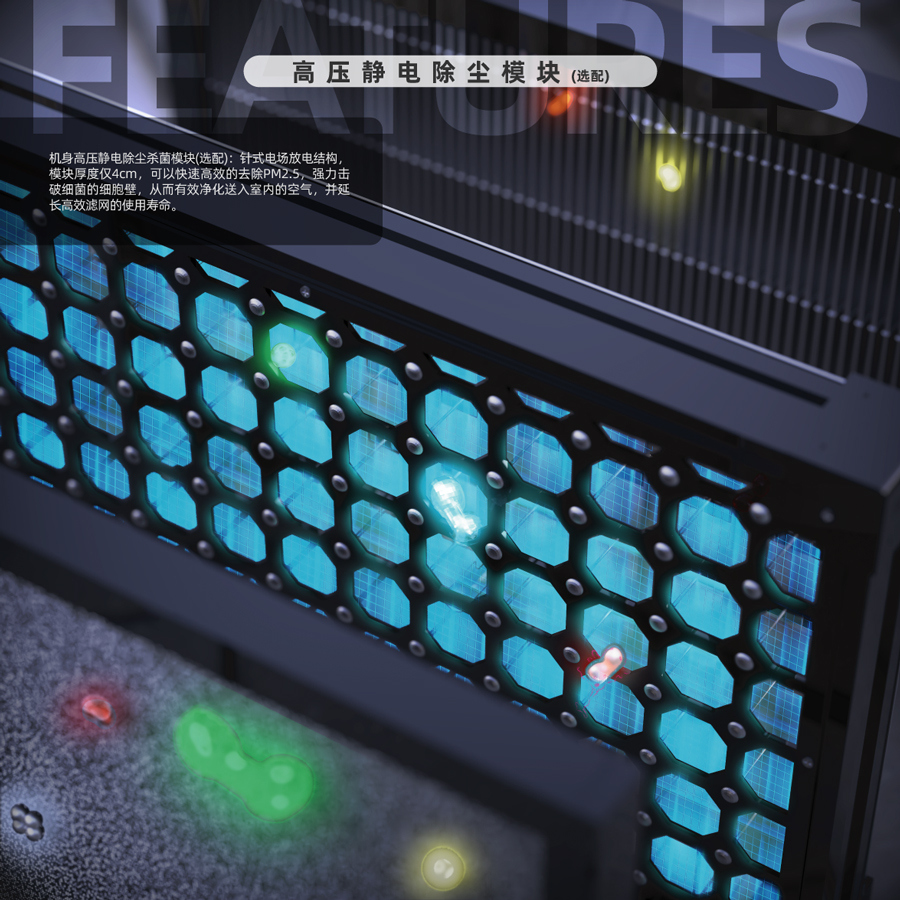

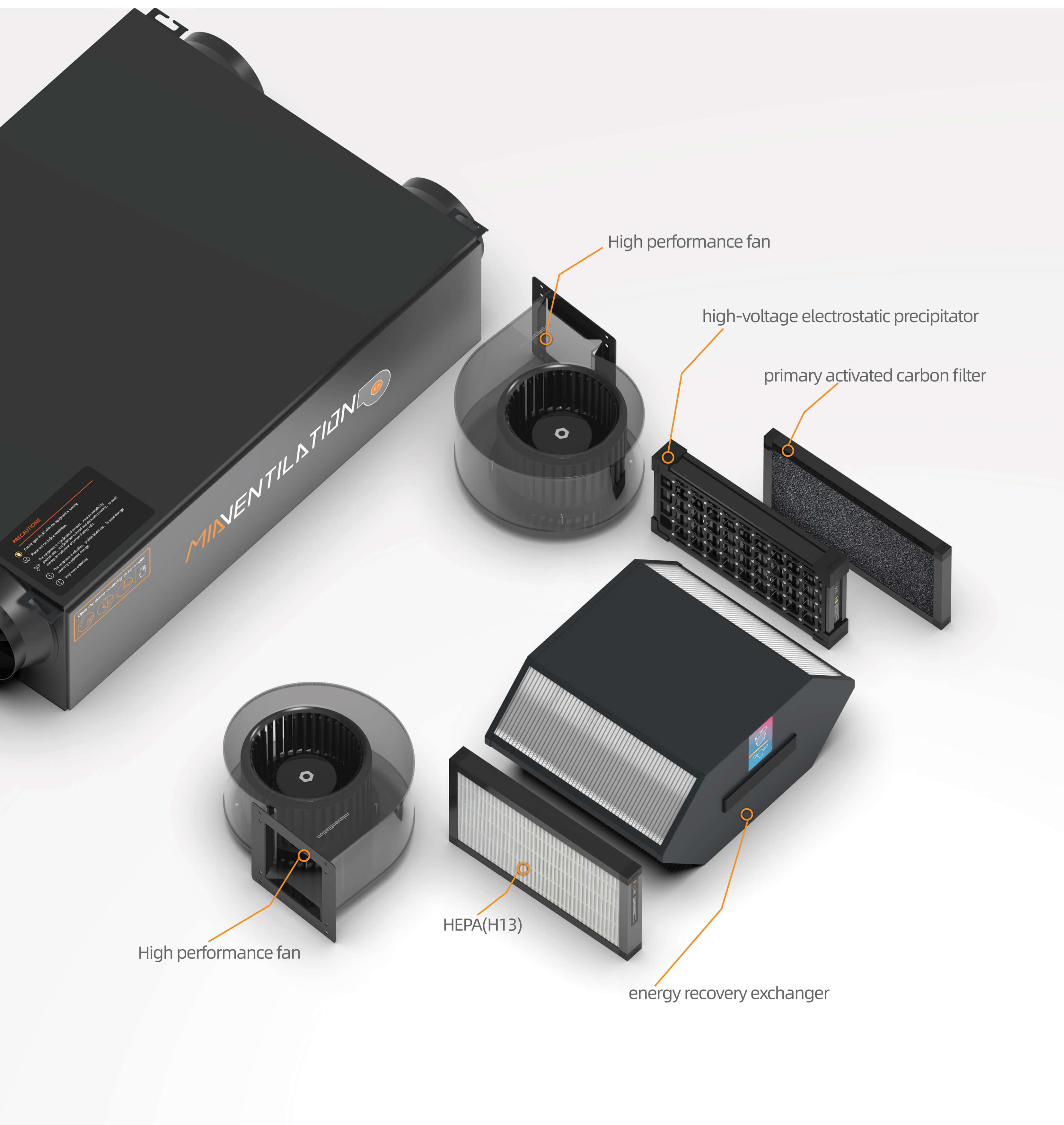

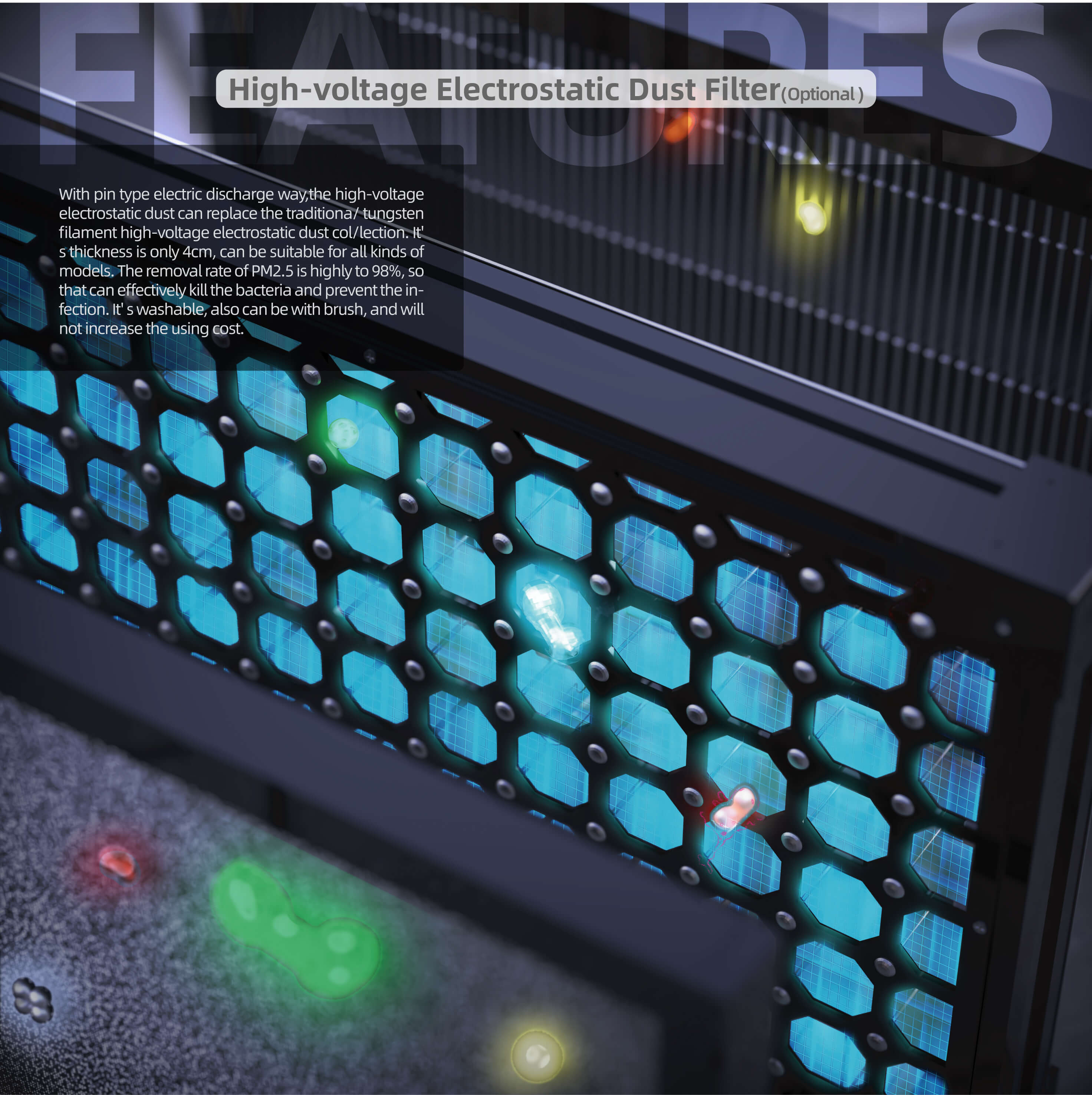

| ERV with High-voltage Electrostatic Precipitator (filter configuration: primany activated carbon filter+HEPA+high-voltage electrostatic precipitator) 高压静电除尘全热交换器(过滤配置：初效活性炭二合一滤网+HEPA 高效滤网+高压静电除尘模块) | ||||||||
|---|---|---|---|---|---|---|---|---|
| DC brushless model 直流无刷机型 | AC motor model 交流电机机型 | |||||||
|
model 型号 |
MIA-AHE15JDB/C | MIA-AHE25JDB/C | MIA-AHE35JDB/C | MIA-AHE50JDB/C | MIA-AHE15JDB | MIA-AHE25JDB | MIA-AHE35JDB | MIA-AHE50JDB |
|
voltage 电压 |
220V | 220V | 220V | 220V | 220V | 220V | 220V | 220V |
|
power 功率 |
98W | 176W | 241W | 306W | 130W | 182W | 265W | 462W |
|
volume 风量 |
150m³/h | 250m³/h | 350m³/h | 500m³/h | 150m³/h | 250m³/h | 350m³/h | 500m³/h |
|
pressure 静压 |
285Pa | 360Pa | 385Pa | 420Pa | 285Pa | 360Pa | 385Pa | 420Pa |
|
efficiency 热回收率 |
86%~92% | 86%~89% | 85%~88% | 84%~87% | 86%~92% | 86%~89% | 85%~88% | 84%~87% |
|
noise 噪音 |
30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) | 30dB(A) | 32dB(A) | 35dB(A) | 37dB(A) |
|
a×b×c 长宽高 |
800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ | 800×556×187㎜ | 866.5×641×229㎜ | 880×686×260㎜ | 1110×846×260㎜ |
|
flange 法兰风口 |
Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ | Φ120㎜ | Φ150㎜ | Φ150㎜ | Φ200㎜ |
|
weight 净重 |
19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ | 19.5㎏ | 26.5㎏ | 31.5㎏ | 45㎏ |
