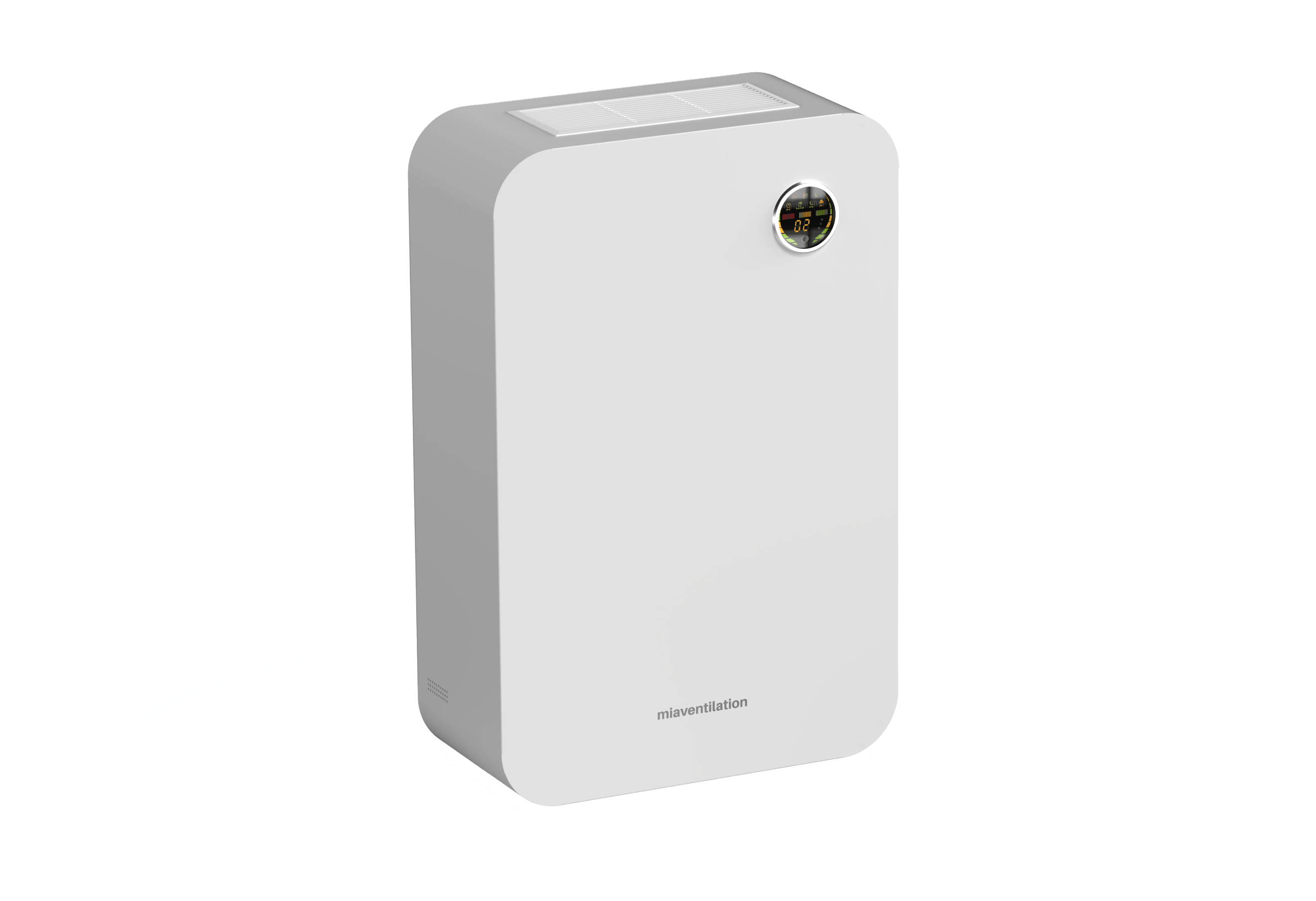

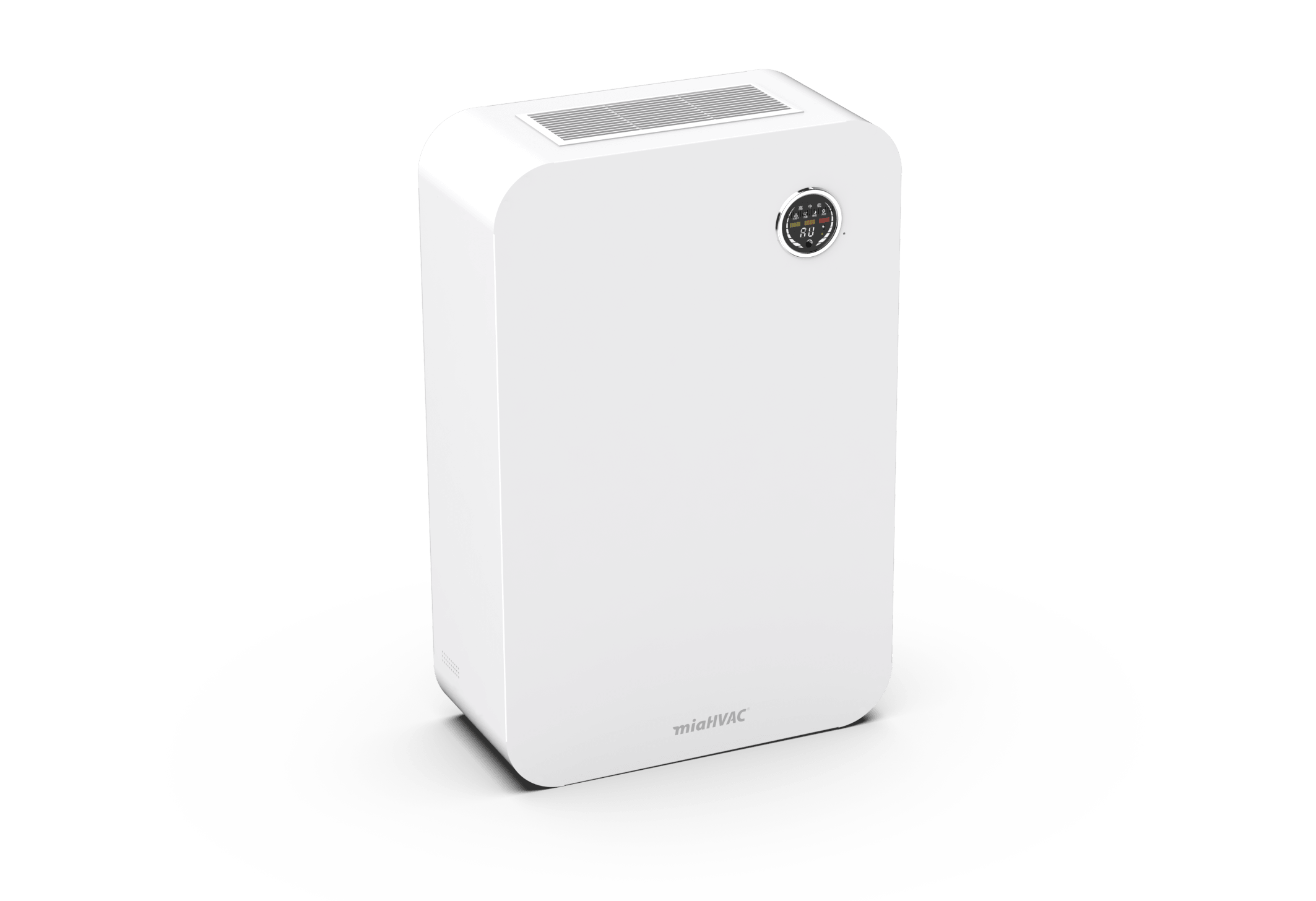

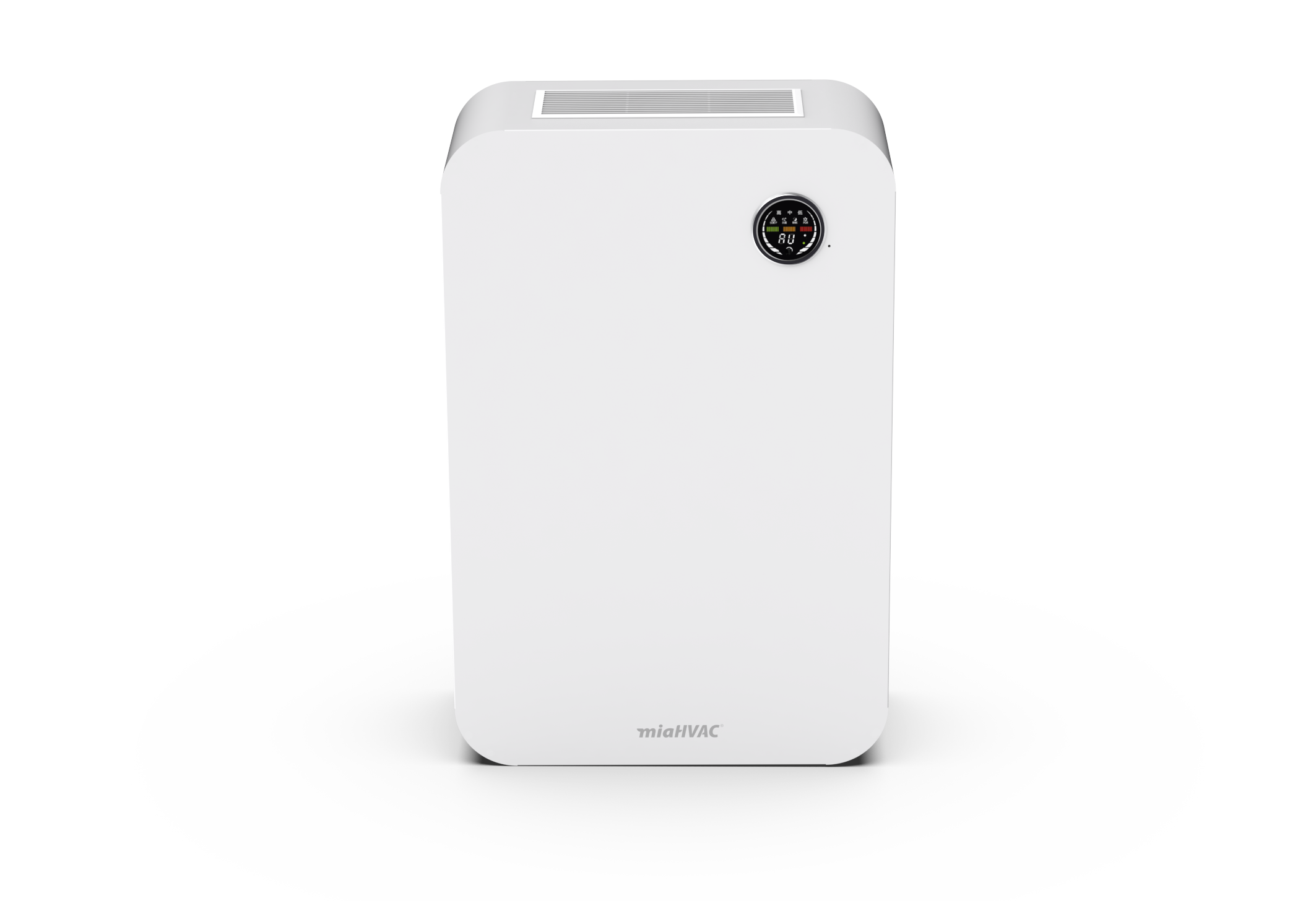

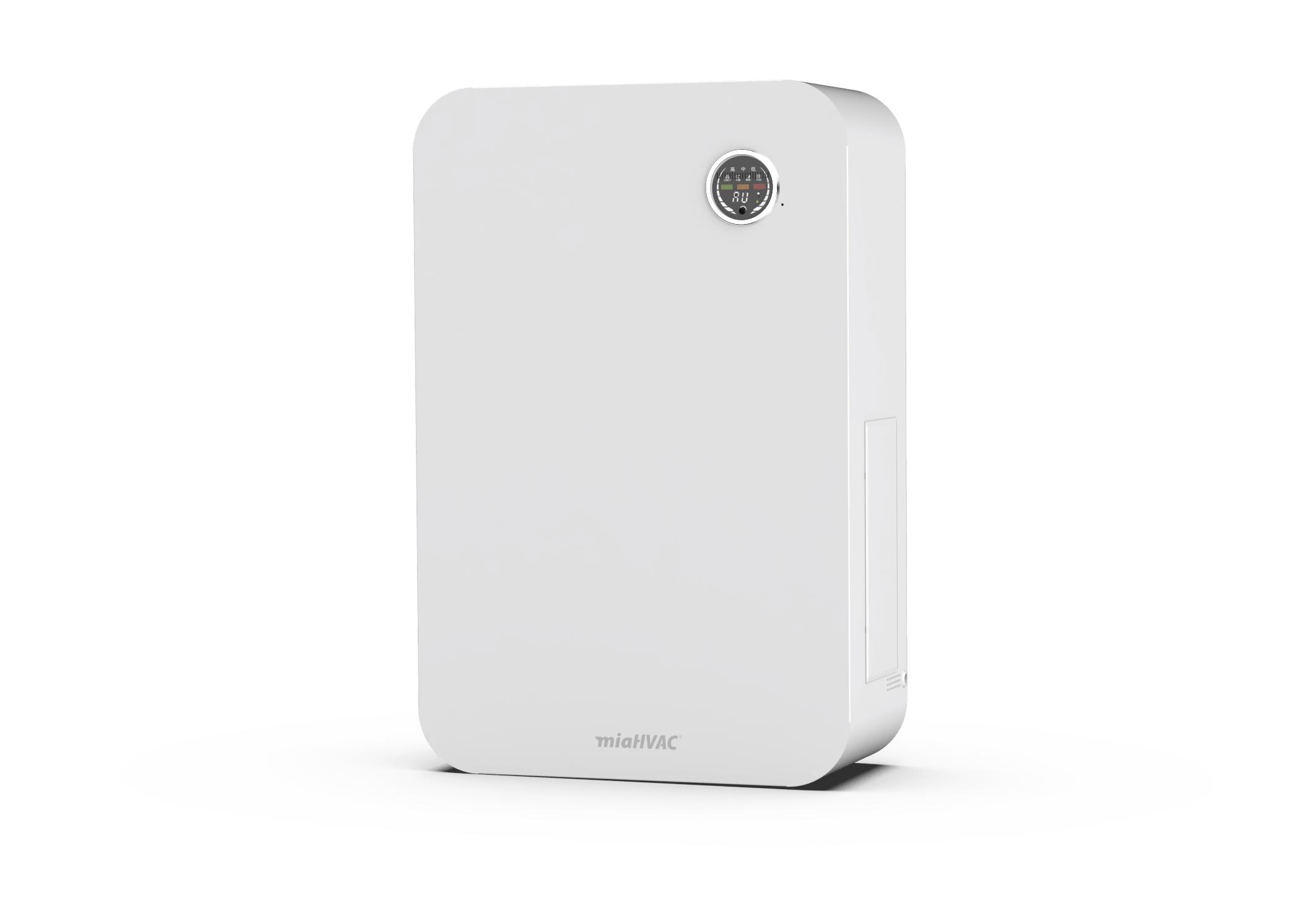

MIA-MS200B

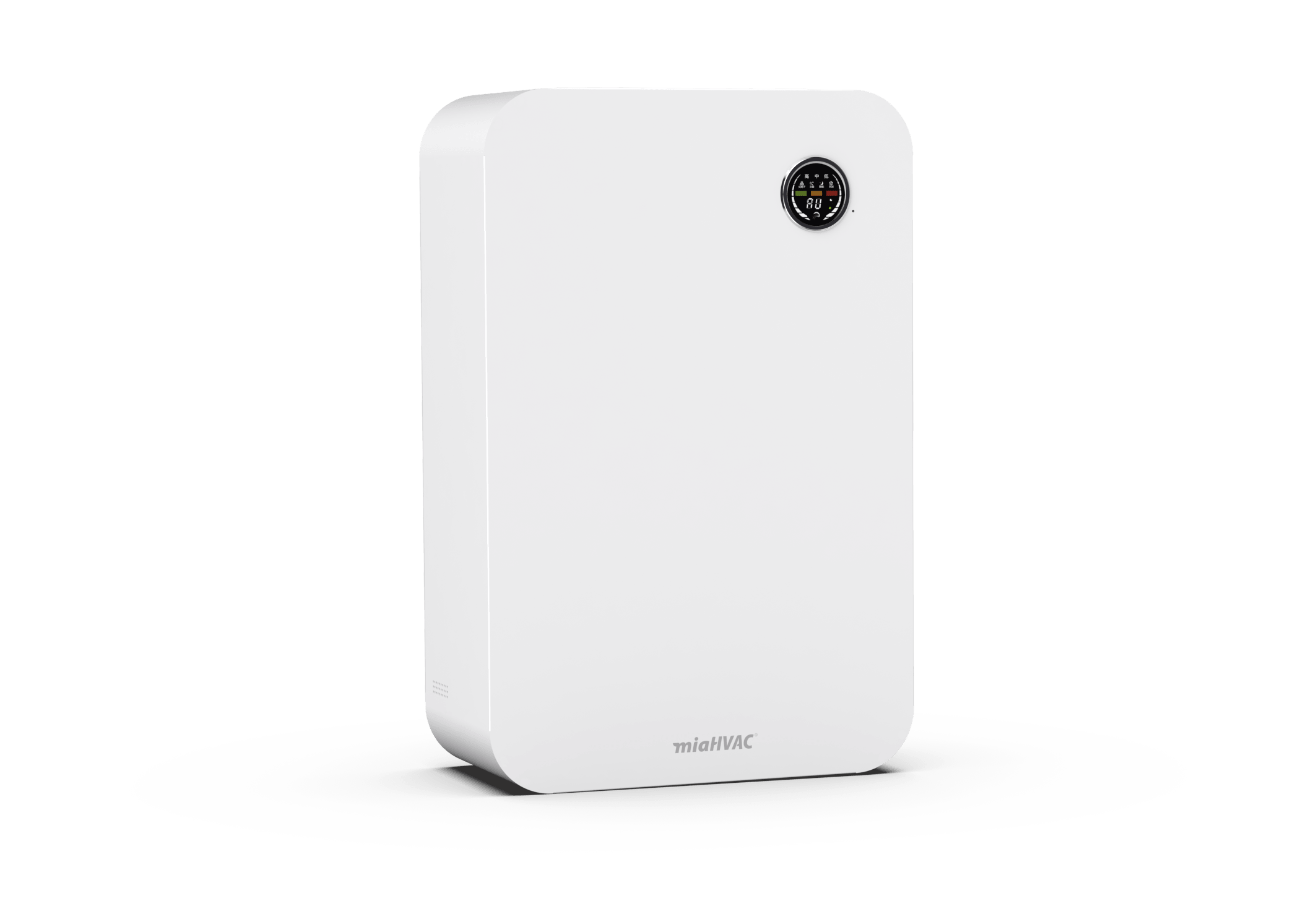

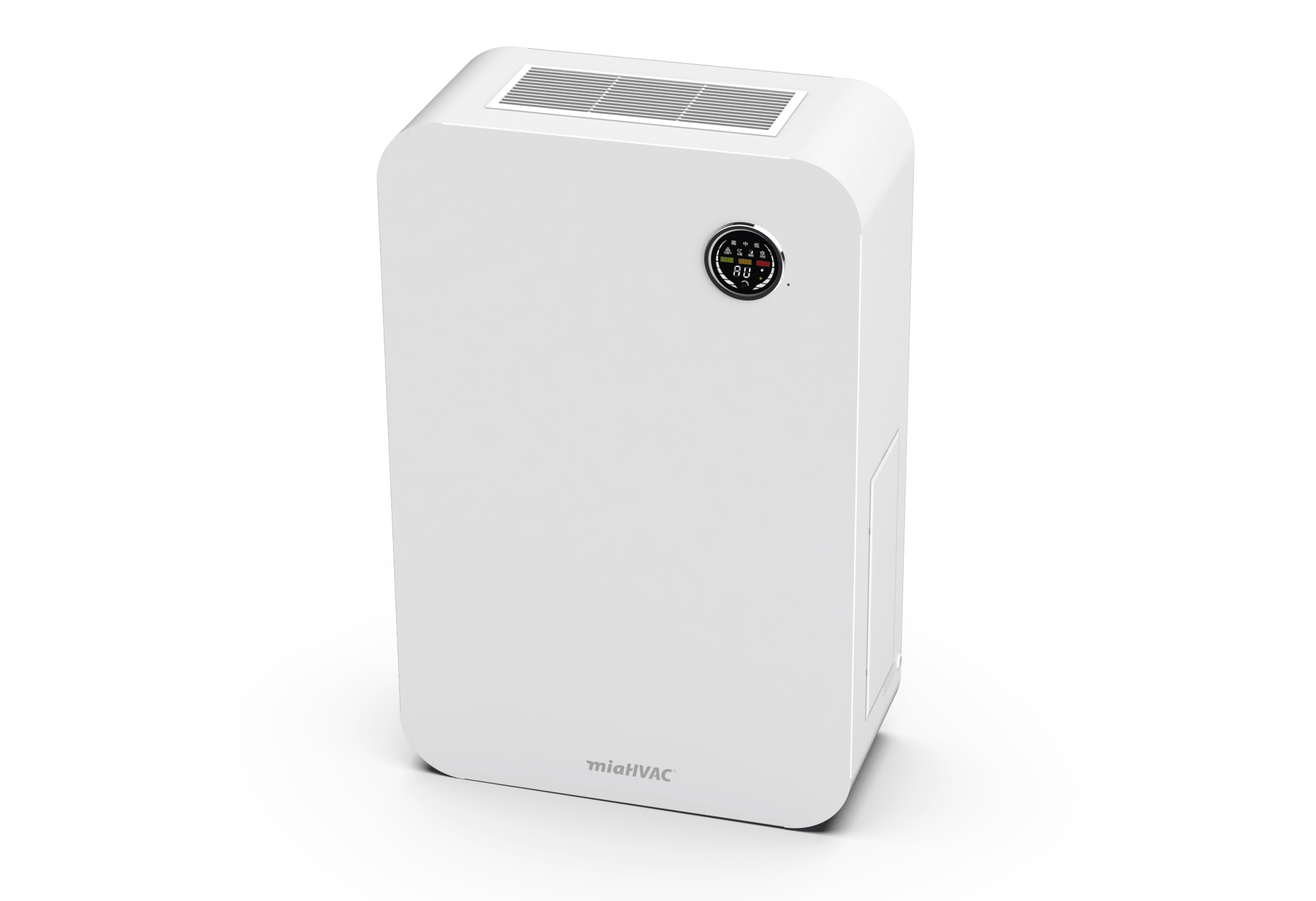

MIA米亚壁挂式单向送风新风机

MIA米亚壁挂式单向送风新风机:壁挂式无管道明装,直出风式送风,将室外的空气抽入设备中,进行过滤后送入室内。设备配备静音型风机,适合在室内进行明装。壁挂式新风系统过滤段可选配可水洗初效滤网、HEPA高效滤网;设备遥控器控制,有空气质量监测,滤网更换提醒,定时,自动模式,手动模式,睡眠模式等功能。

文档下载

设计特点

MIA Wall-mounted Ventilator

MIA米亚壁挂式单向送风新风机

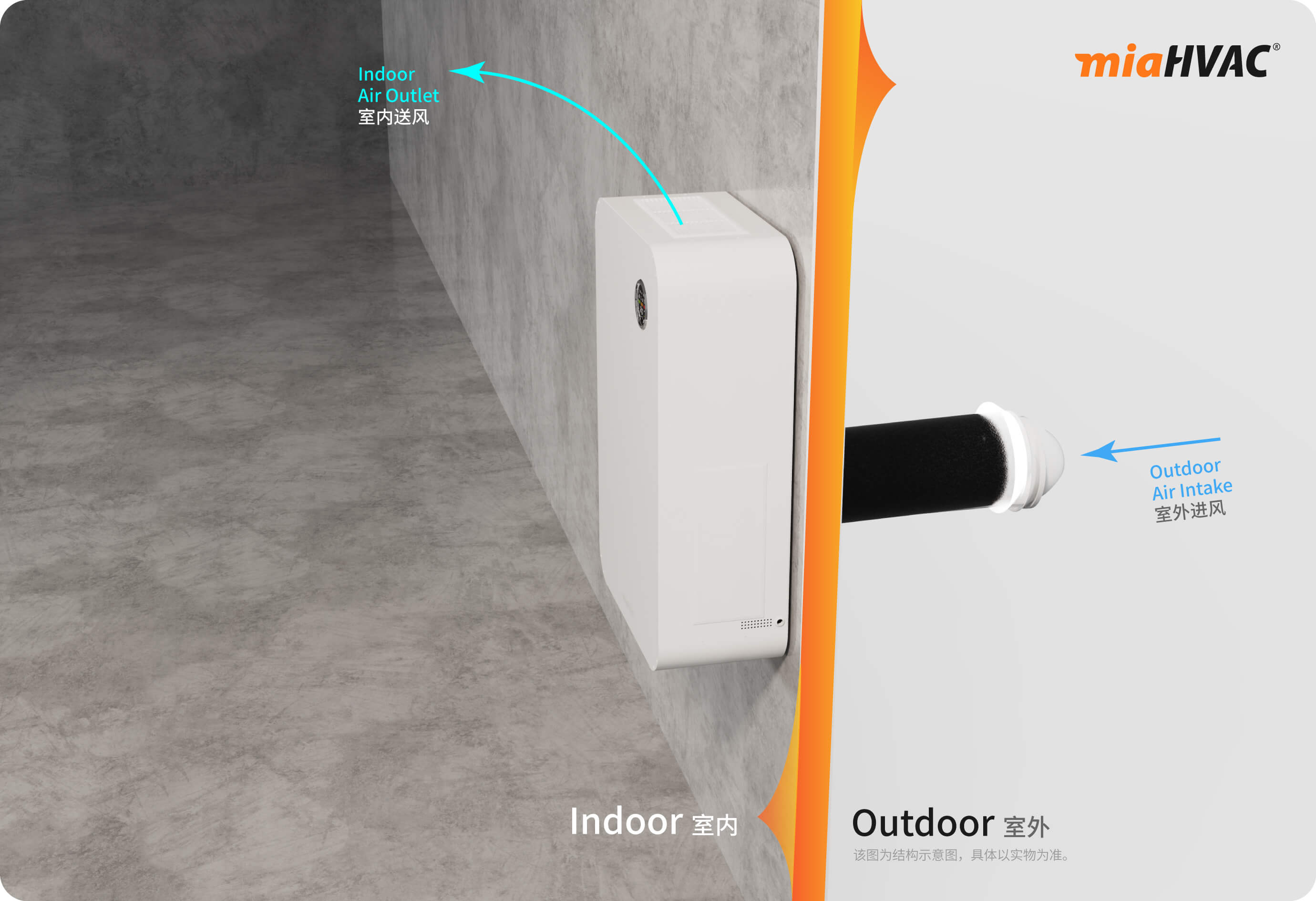

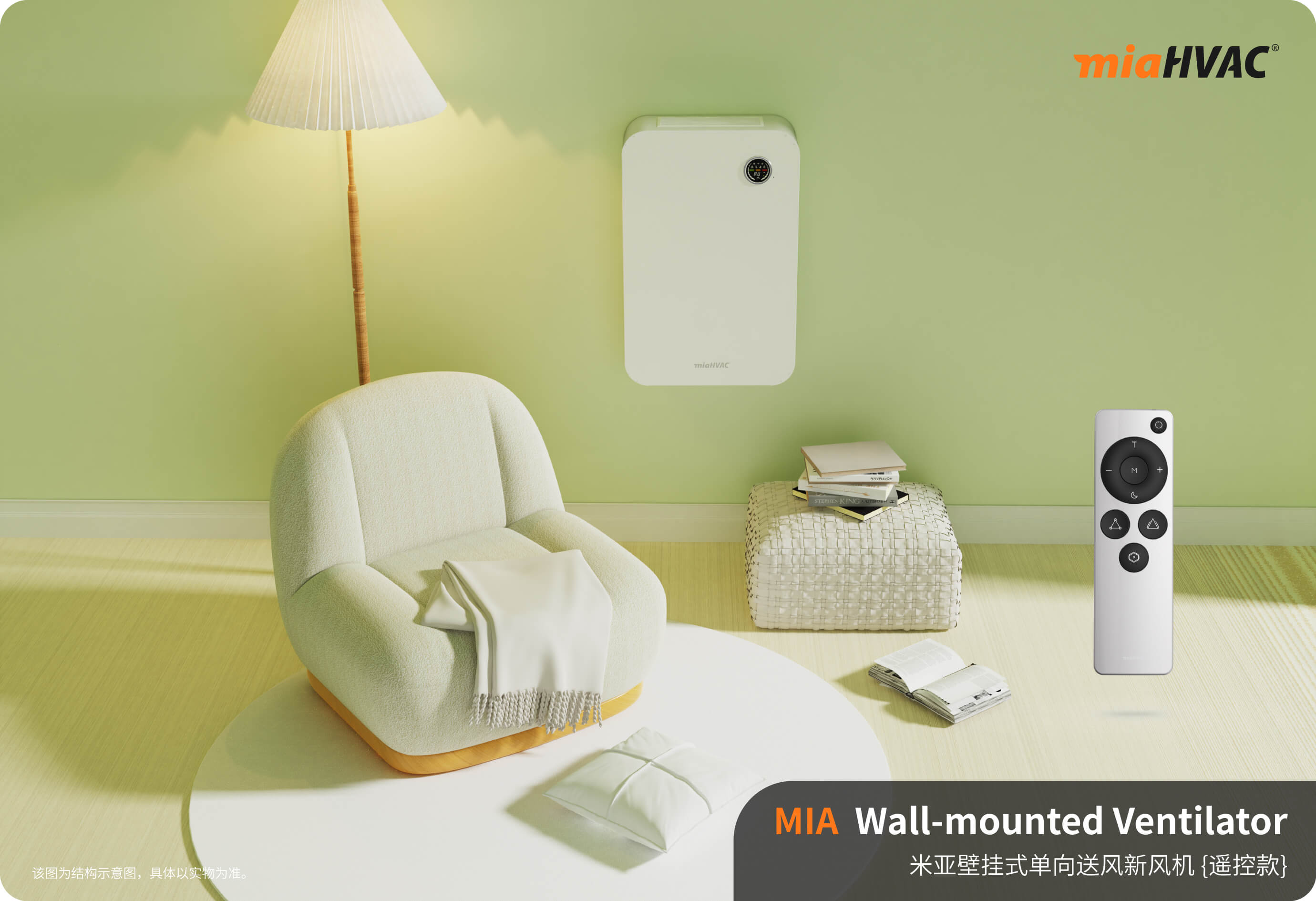

MIA Wall-mounted Ventilator: Wall-mounted, ductless, and surface-mounted, it features direct air supply. It draws outdoor air into the device, filters it, and then supplies it indoors. Equipped with a silent fan, it is suitable for surface mounting indoors. The filtration section of the wall-mounted fresh air system can be equipped with a washable primary filter screen and a HEPA high-efficiency filter screen. The device is controlled by a remote, and it has functions such as air quality monitoring, filter screen replacement reminder, timing, automatic mode, manual mode, and sleep mode.



MIA米亚壁挂式单向送风新风机:壁挂式无管道明装,直出风式送风,将室外的空气抽入设备中,进行过滤后送入室内。设备配备静音型风机,适合在室内进行明装。壁挂式新风系统过滤段可选配可水洗初效滤网、HEPA高效滤网;设备遥控器控制,有空气质量监测,滤网更换提醒,定时,自动模式,手动模式,睡眠模式等功能。

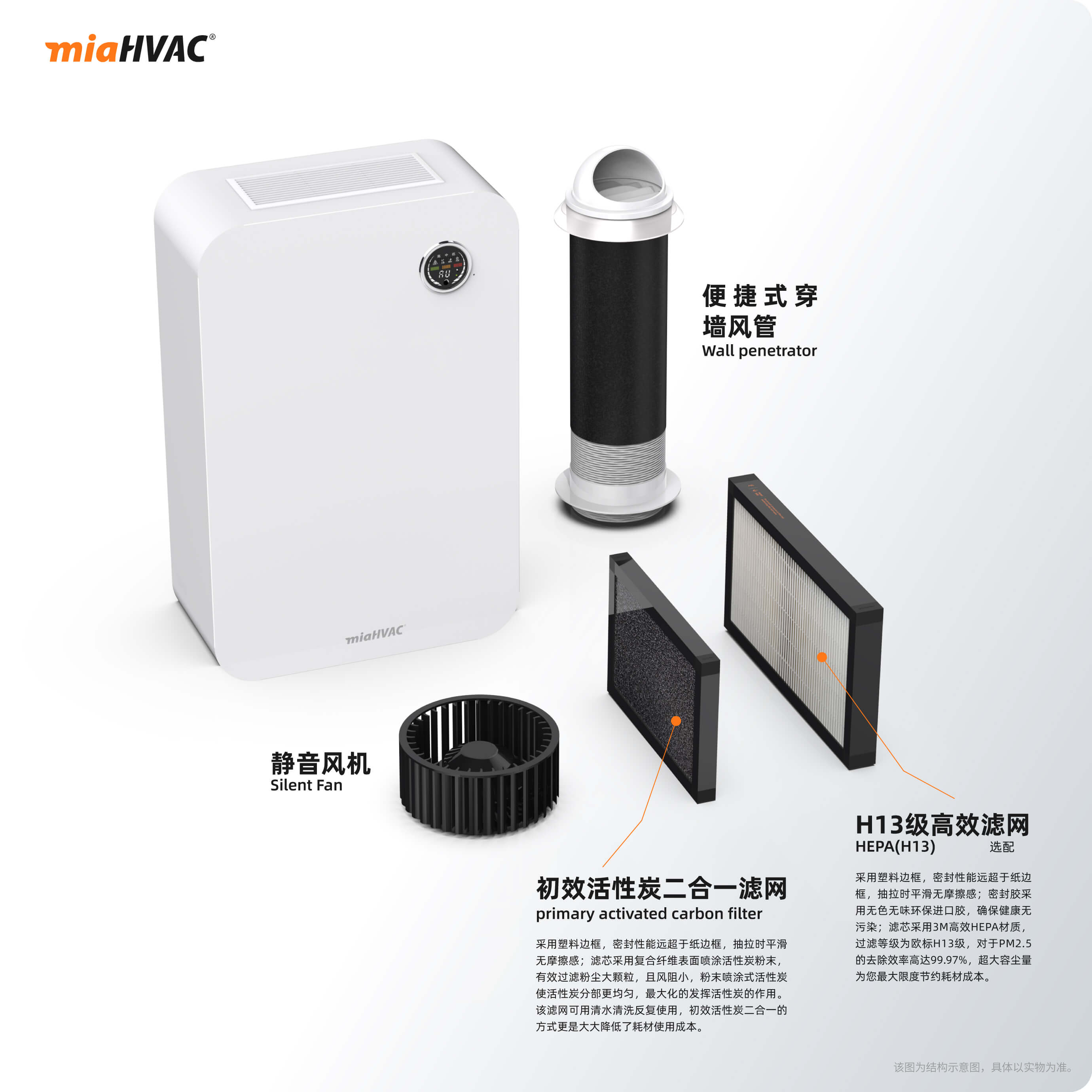

High Efficiency Particulate Air (HEPA-H13) Filter:The thickness of this filter is only 3cm. The plastic frame has higher sealing than paper frame, and we use the environmental friendly imported sealant, no color & odor, to ensure healthy and avoid pollution. The raw material of this HEPA filter is from 3M, European standard H13 level. PM2.5 removal rate can be up to 99.97%, and the large dust holding capacity can save the total cost of consumables.



H13级HEPA高效滤网:采用塑料边框,密封性能远超于纸边框,抽拉时平滑无摩擦感;密封胶采用无色无味环保进口胶,确保健康无污染;滤芯采用3M高效HEPA材质,过滤等级为欧标H13级,对于PM2.5的去除效率高达99.97%,超大容尘量为您最大限度节约耗材成本。



Primary Activated Carbon Filter:The plastic frame of this filter seals better than the paper frame, and it is only 2cm thick. The filter is made of composite fiber sprayed with activated carbon powder that can filter out dust particle efficiently. The wind resistance of this filter is very low. The method of spraying makes the activated carbon powder more evenly distributed, which can maximize the effect of activated carbon. This washable filter can be used repeatedly and the combination of primary filter with activated carbon can greatly save your cost of consumables.



初效活性炭二合一滤网:采用塑料边框,密封性能远超于纸边框,抽拉时平滑无摩擦感;滤芯采用复合纤维表面喷涂活性炭粉末,有效过滤粉尘大颗粒,且风阻小,粉末喷涂式活性炭使活性炭分部更均匀,最大化的发挥活性炭的作用。该滤网可用清水清洗反复使用,初效活性炭二合一的方式更是大大降低了耗材使用成本。

技术规格

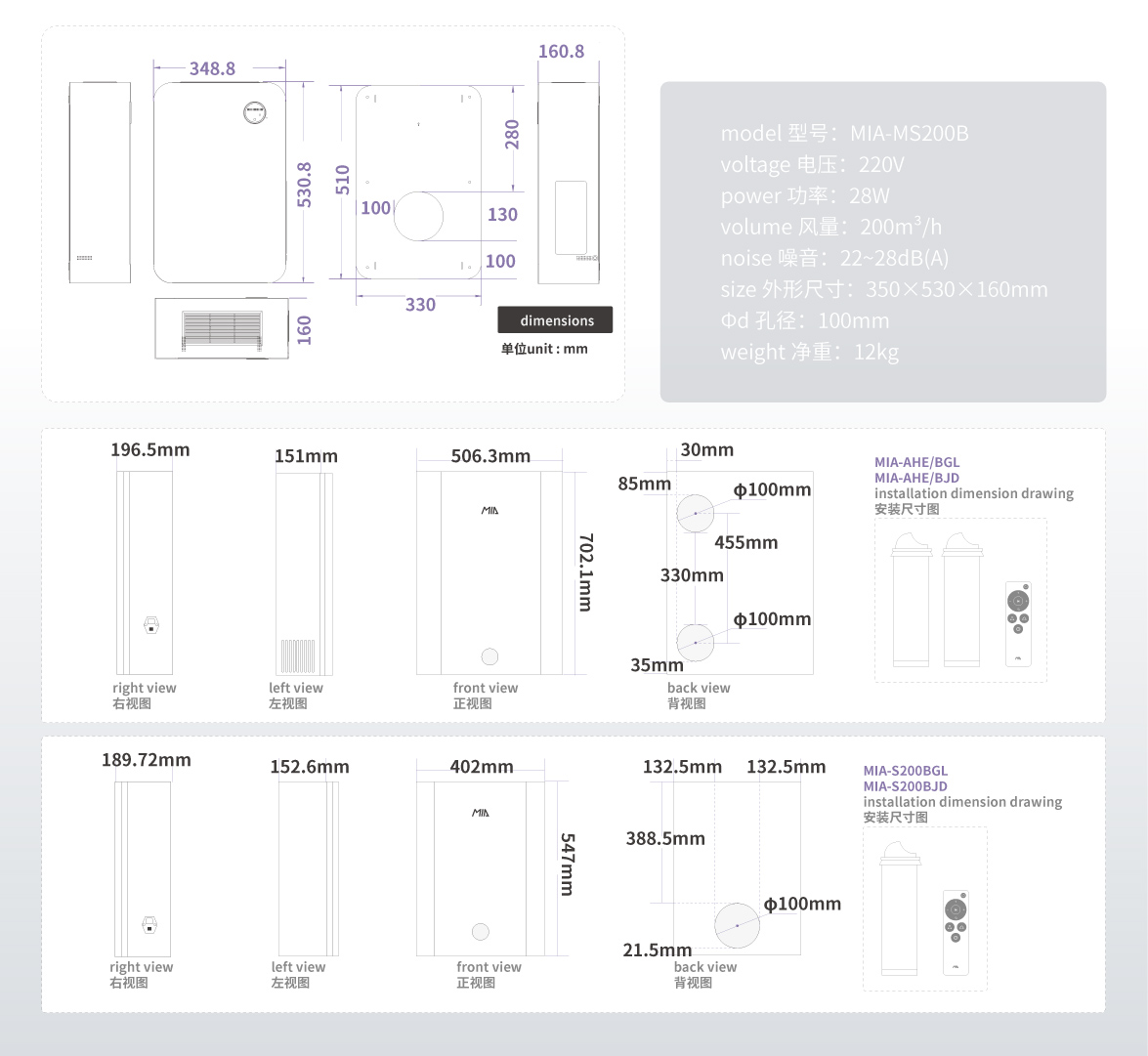

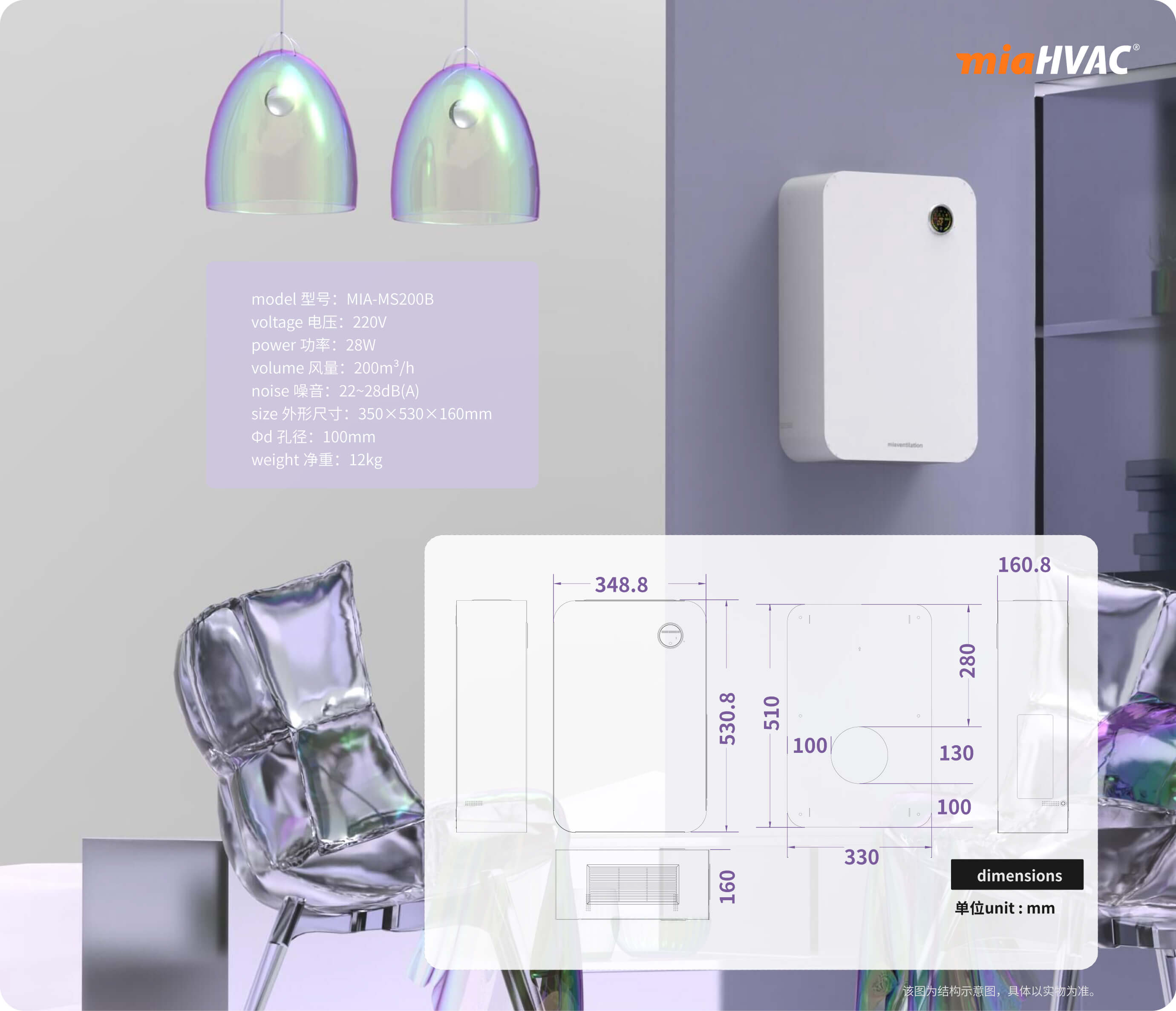

Model 型号 Voltage 电压 Power 功率 Volume 风量 Noise 噪音 Size 尺寸(mm) Φd(mm) Weight 净重
MIA-MS200B 220V 28W 200m³/h 22~28dB(A) 350×530×160 100 12kg
